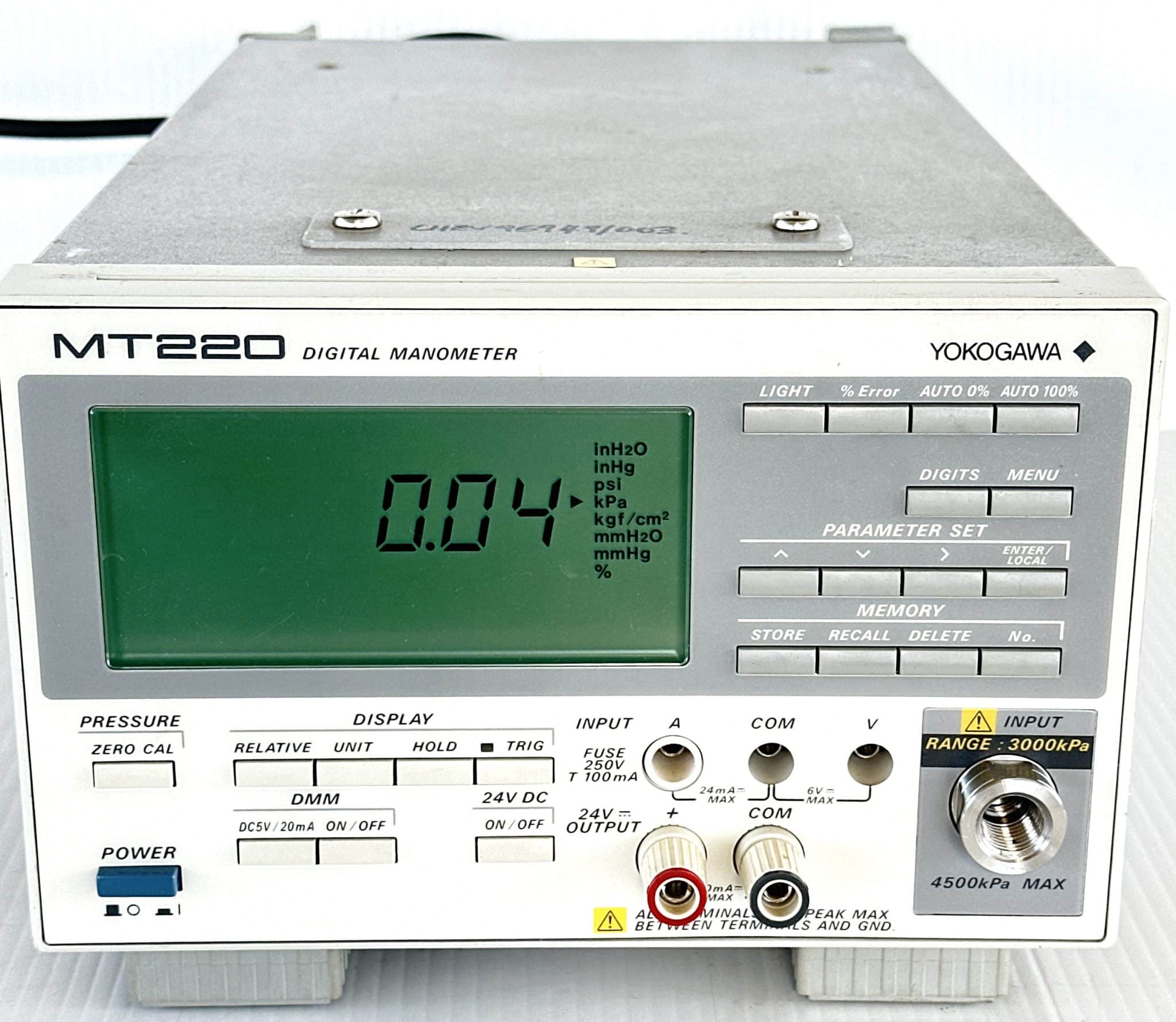

Yokogawa MT220-3000

“The MT220 can measure pressure with outstanding accuracy, high resolution, minimal tempco, and excellent stability. It offers a wealth of functions for field calibration, including transmitter output measurement (DCV/DCA functions), 24-V DC output, percent error readout, measurement data memory, and Ni-Cd battery operation. The D/A conversion output makes it simple to output data to a recorder or other equipment. And of course, data output through a GP-IB or RS-232 interface is also possible-including data output during operation on a 12 V DC power supply or Ni-Cd batteries.”

Specifications:

• Condition: Used
• Type: Portable Pressure Calibrator Manometer
• Make: Yokogawa
• Model: MT220-U3-C2-P2-R
• Serial: 91N424372
• Part: 767356
• Transducer: 3000kPa
• Accuracy: +/- 0.01%
• Reading: Percent & error
• Memory: Yes
• Measurement: DCV and DCA, 1-5V & 4-20mA
• Output: 24VDC, D/A conversion output, comparator output,
• Comms: GP-IB, RS232
• Accessories: Nil
• Supply: 100-240VAC, 12VDC
• Weight: 6.6kg

Replacement cost on this unit is approximately AUD$23,000

The item is sold with a 30 Day Warranty.
