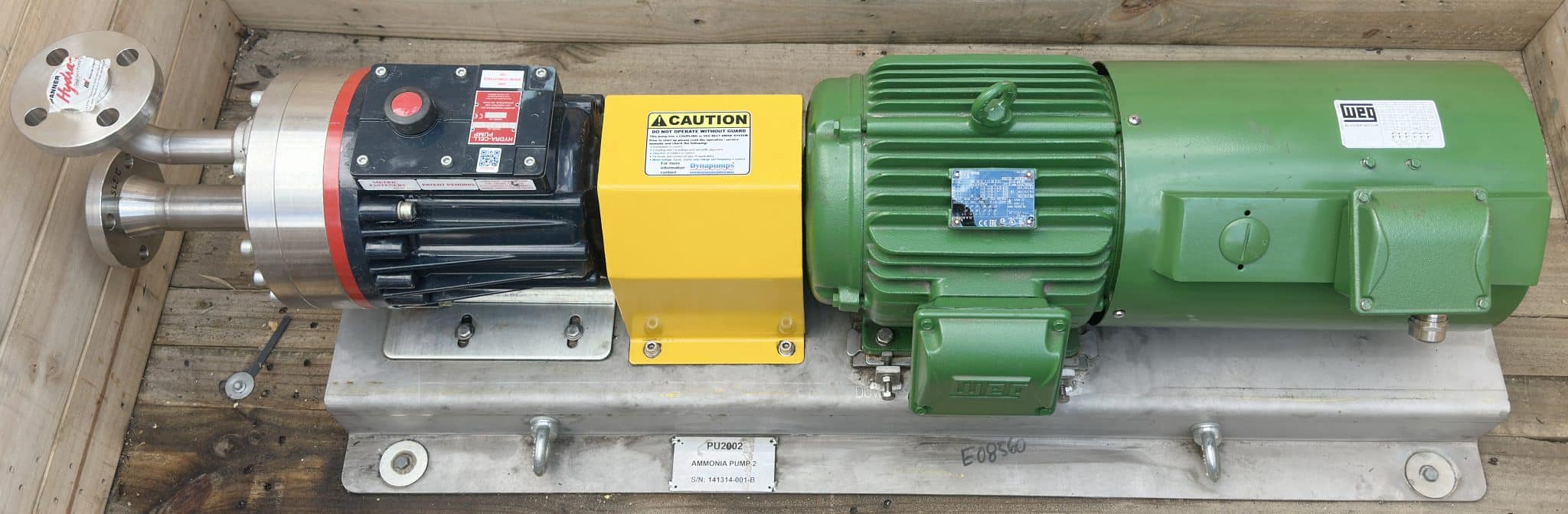

Wanner G25E

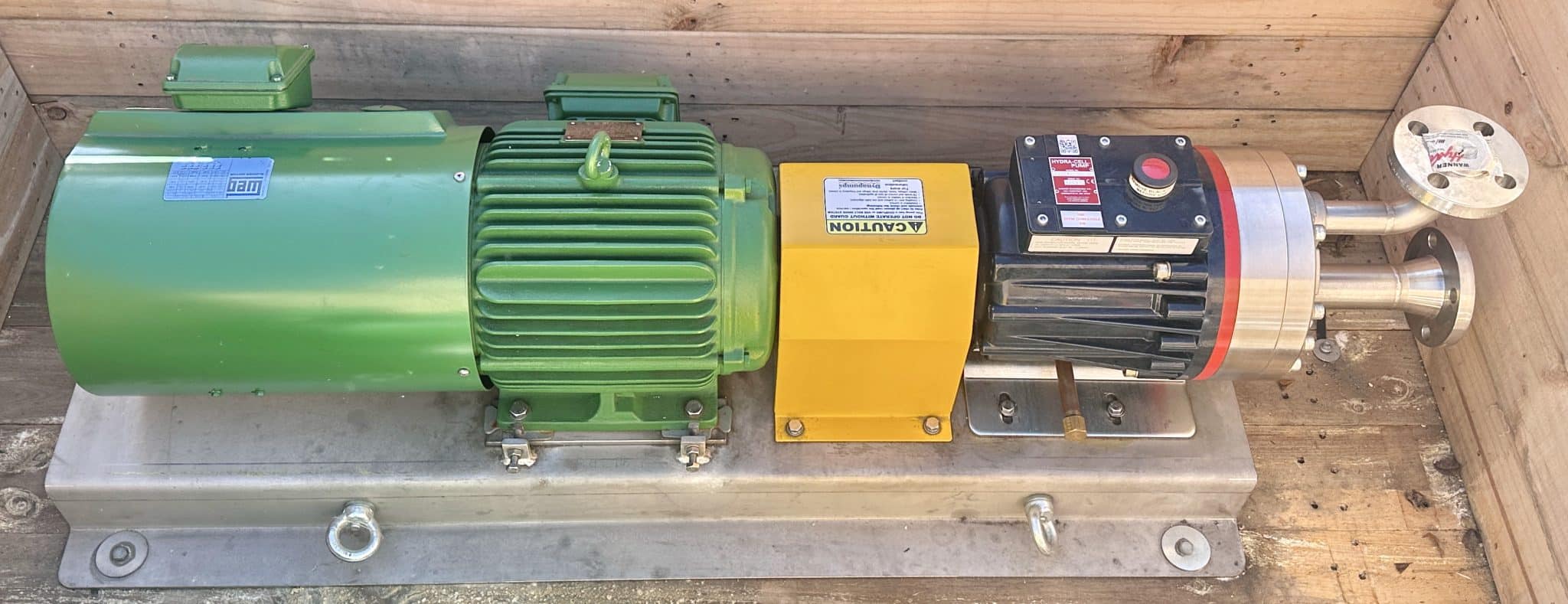

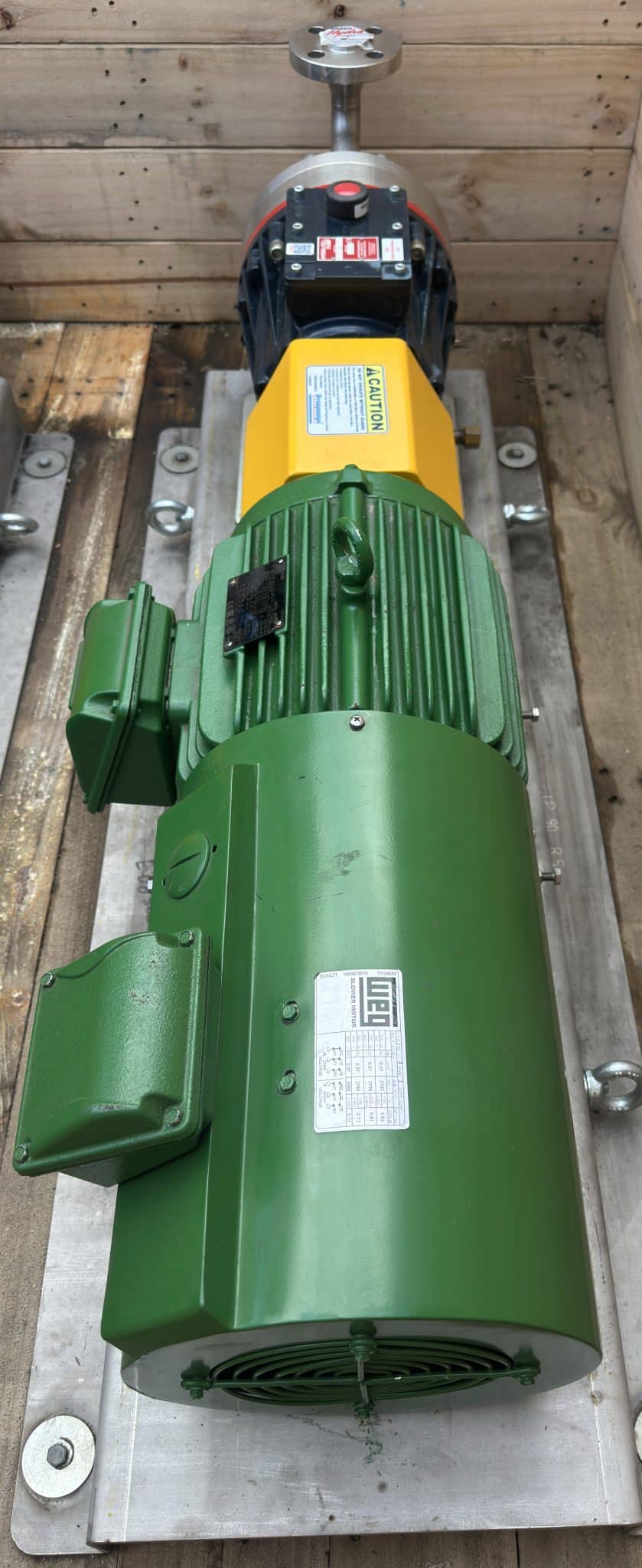

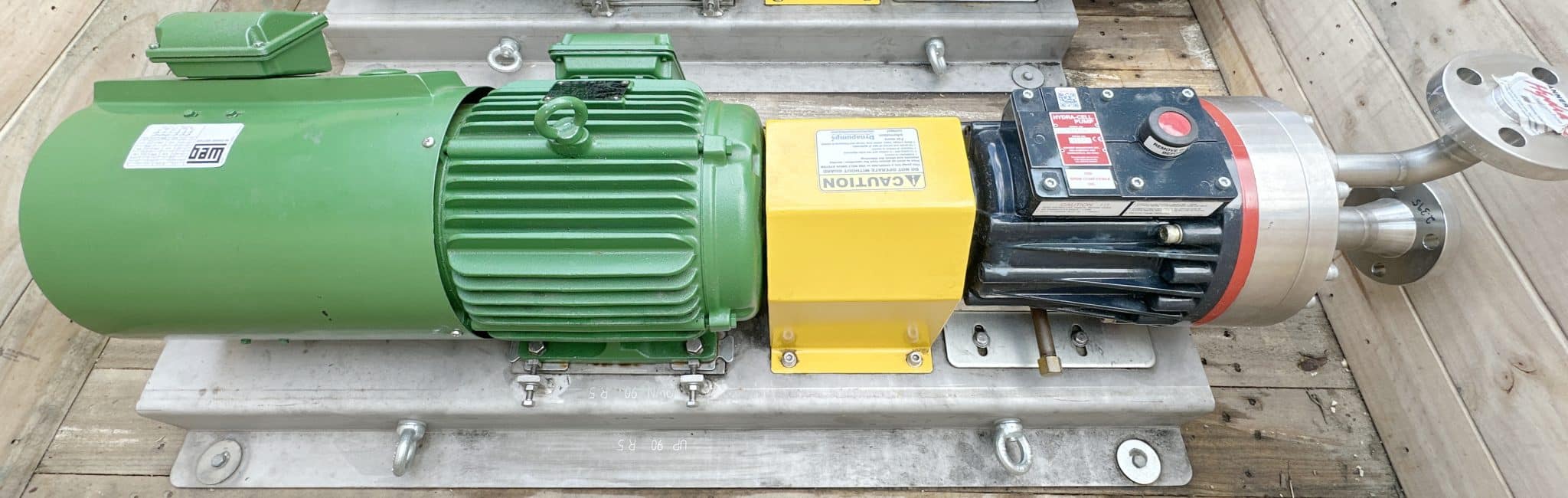

These pumps were surplus from a project and were setup for pumping Ammonia. They are long coupled with the blower option and come with an oil level monitor and spare seal kit.

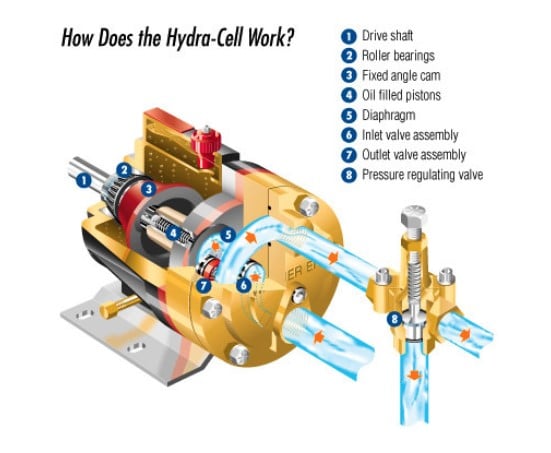

“Integrates Wanner Hydra-Cell® Pro seal-less pump technologies for the highest levels of volumetric and energy efficiencies, up to 90% across the full rpm range. Reliably handles a wide range of viscosities and shear sensitivities, corrosive liquids, abrasives, slurries and suspended solids. Can run dry indefinitely without damage to the pump. Hydra-Cell pumps are equally suitable for high and low pressure applications. They are efficient high-performance pumps for liquid transfer, dosing tasks and spray applications with various liquids. These include chemicals, solvents, acids, hydrocarbons, natural gas liquids, alkalis, polymers, aqueous ammonia, resins, sludges, recycled or dirty liquids, etc.”

Specifications:

• Condition: New
• Type: Seal-less Pump
• Make: Wanner (USA)
• Series: G25-E Hydra-Cell

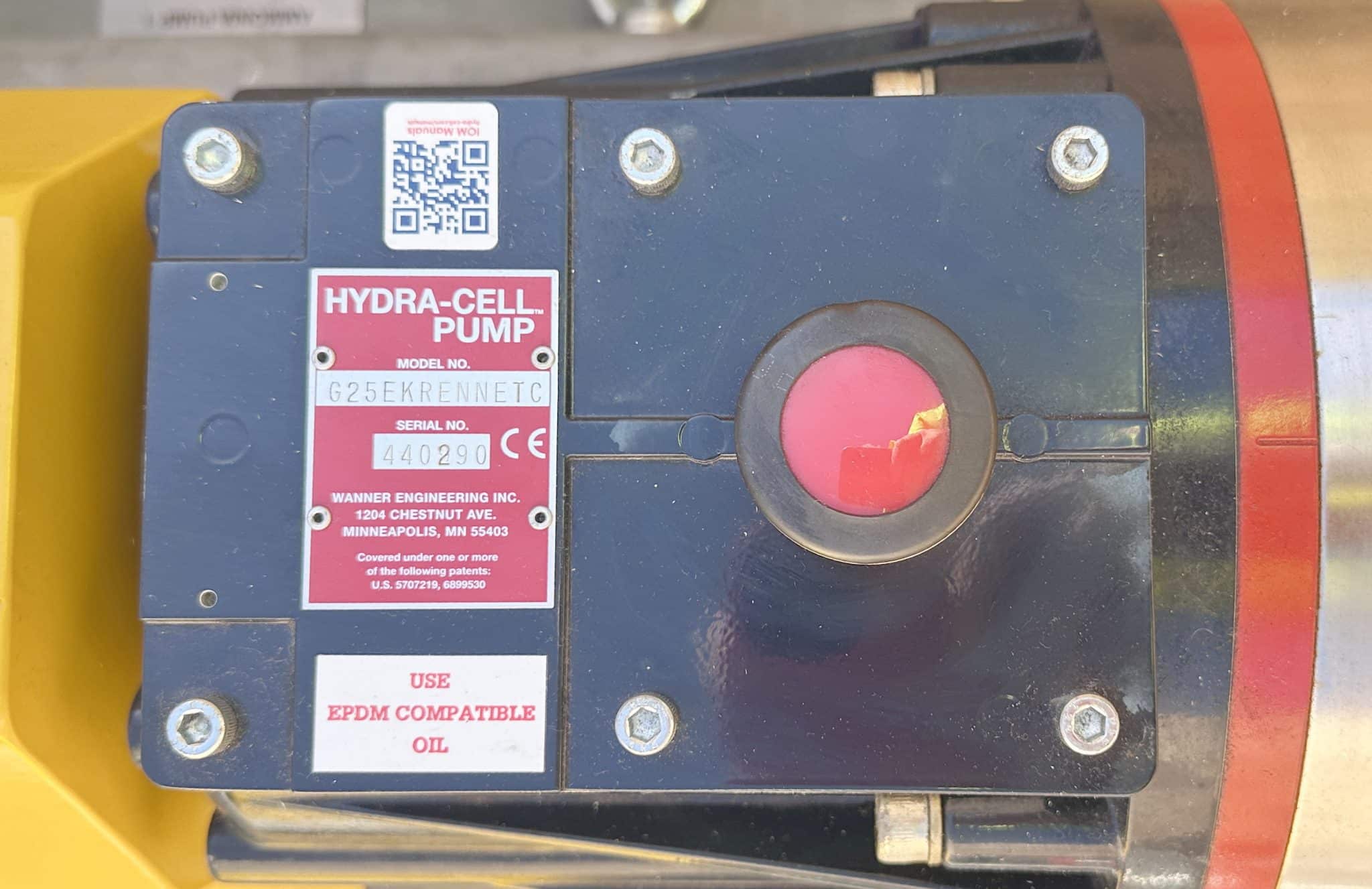

• Model: G25EKRENNET0
• Serial: 440289

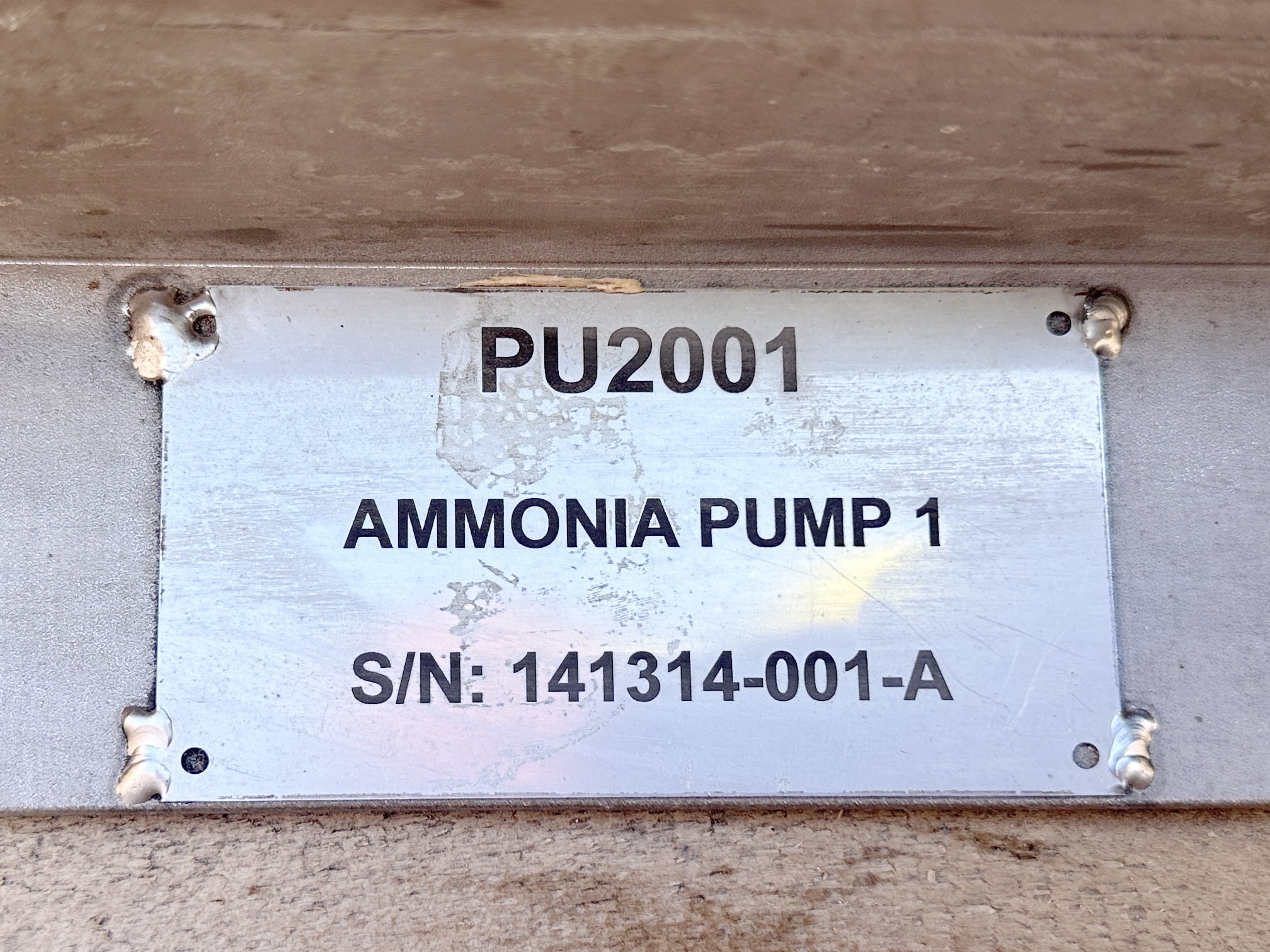

• Configuration: Setup for pumping Ammonia

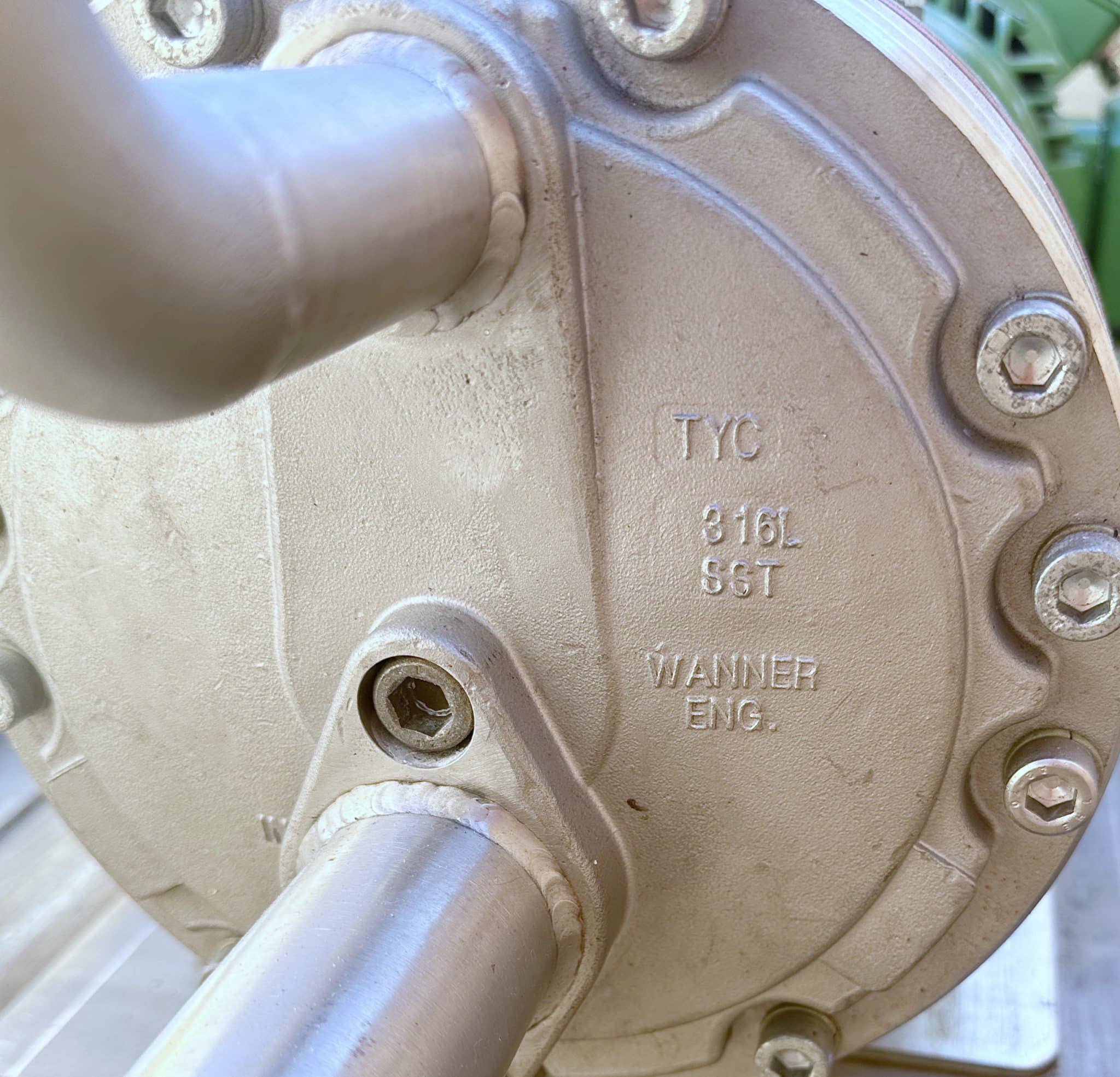

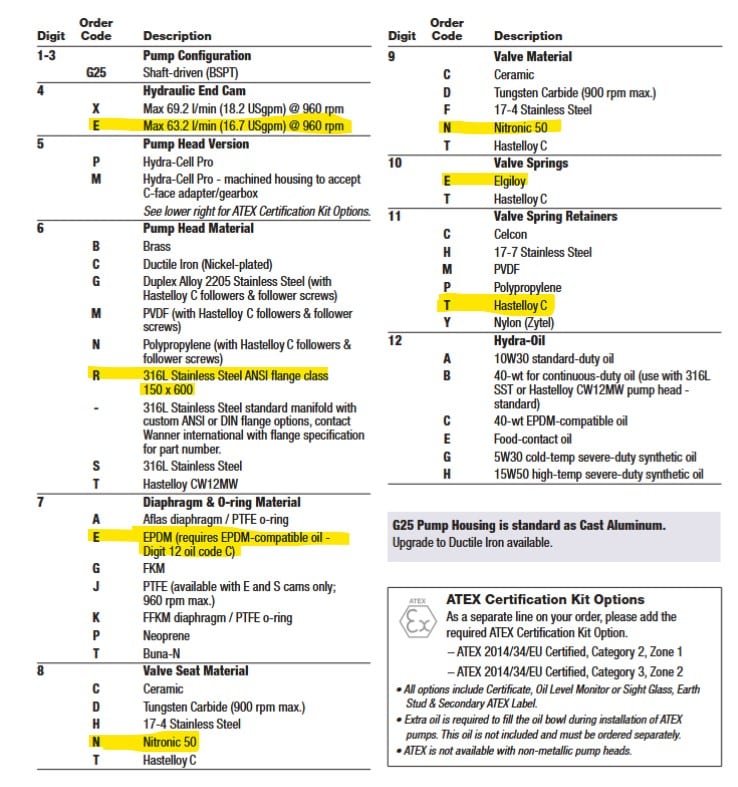

• Options: 316L Pump Head, EPDM Diaphragm, Nitronic50 Seat&Valve,
• Flow: 63.2LPM @ 960rpm
• Inlet Press: 250psi
• Outlet Press: 1000psi
• Solids: 800 microns max

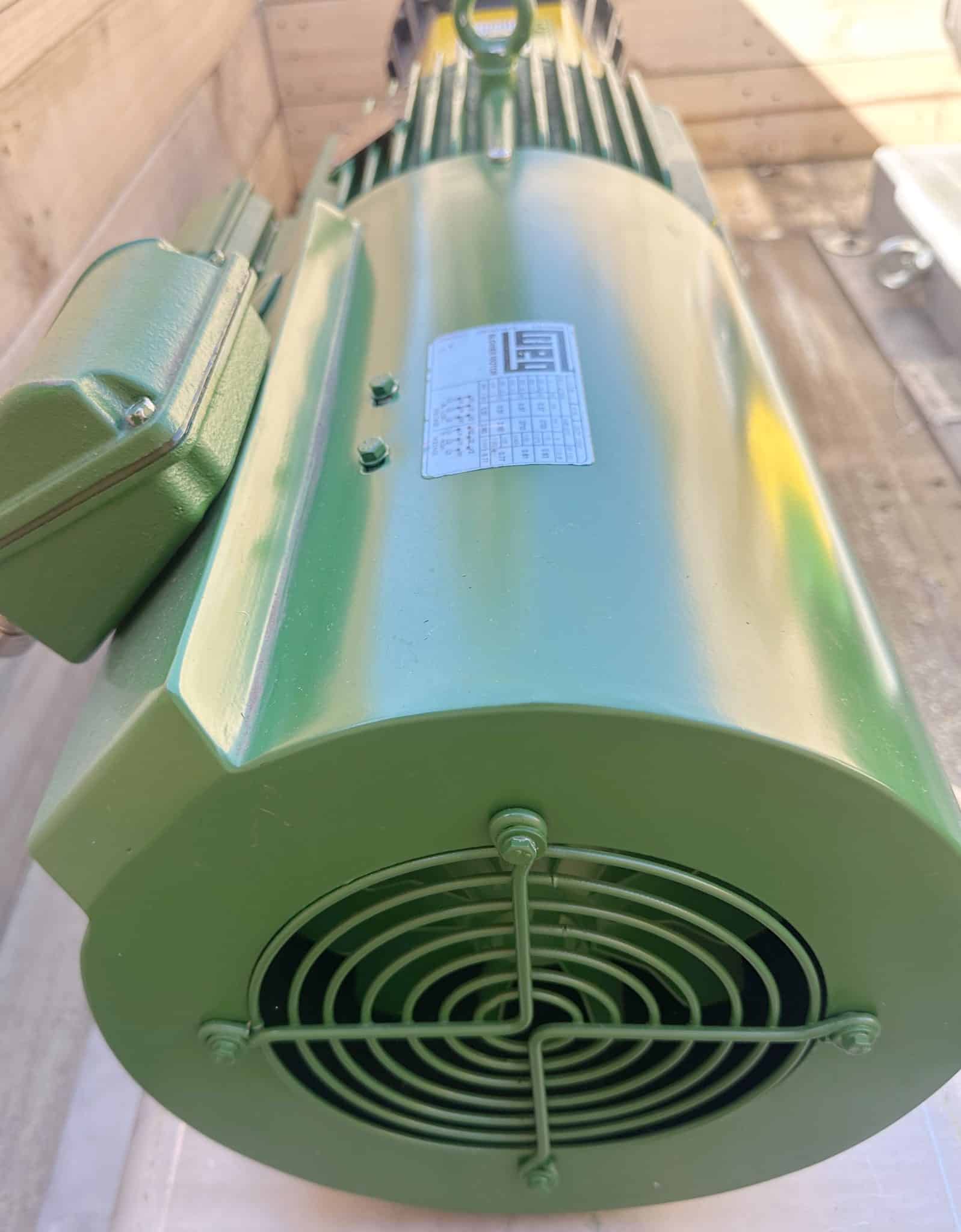

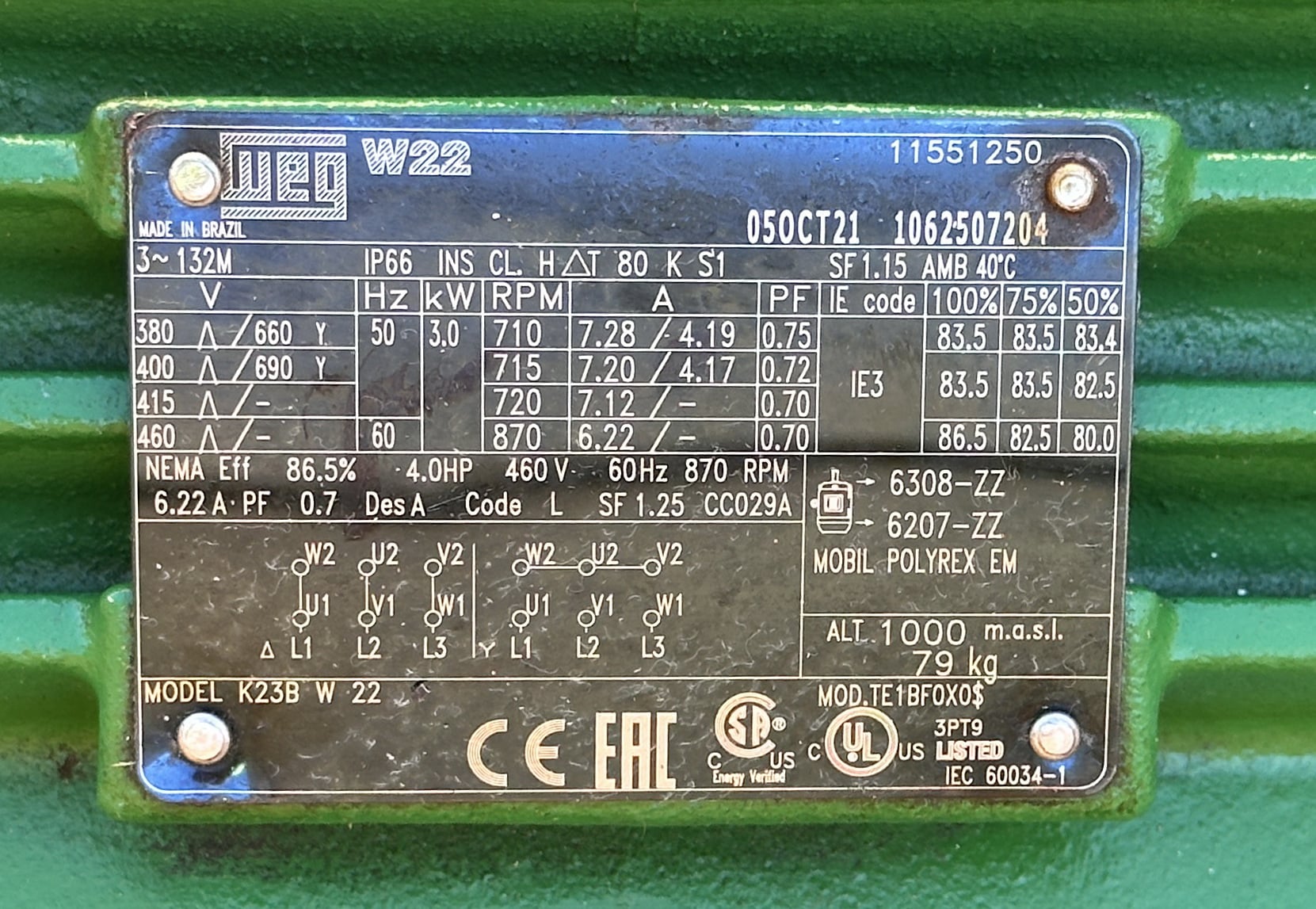

• Motor: 3kW WEG 3ph 380-460VAC 50/60hz Delta/Star

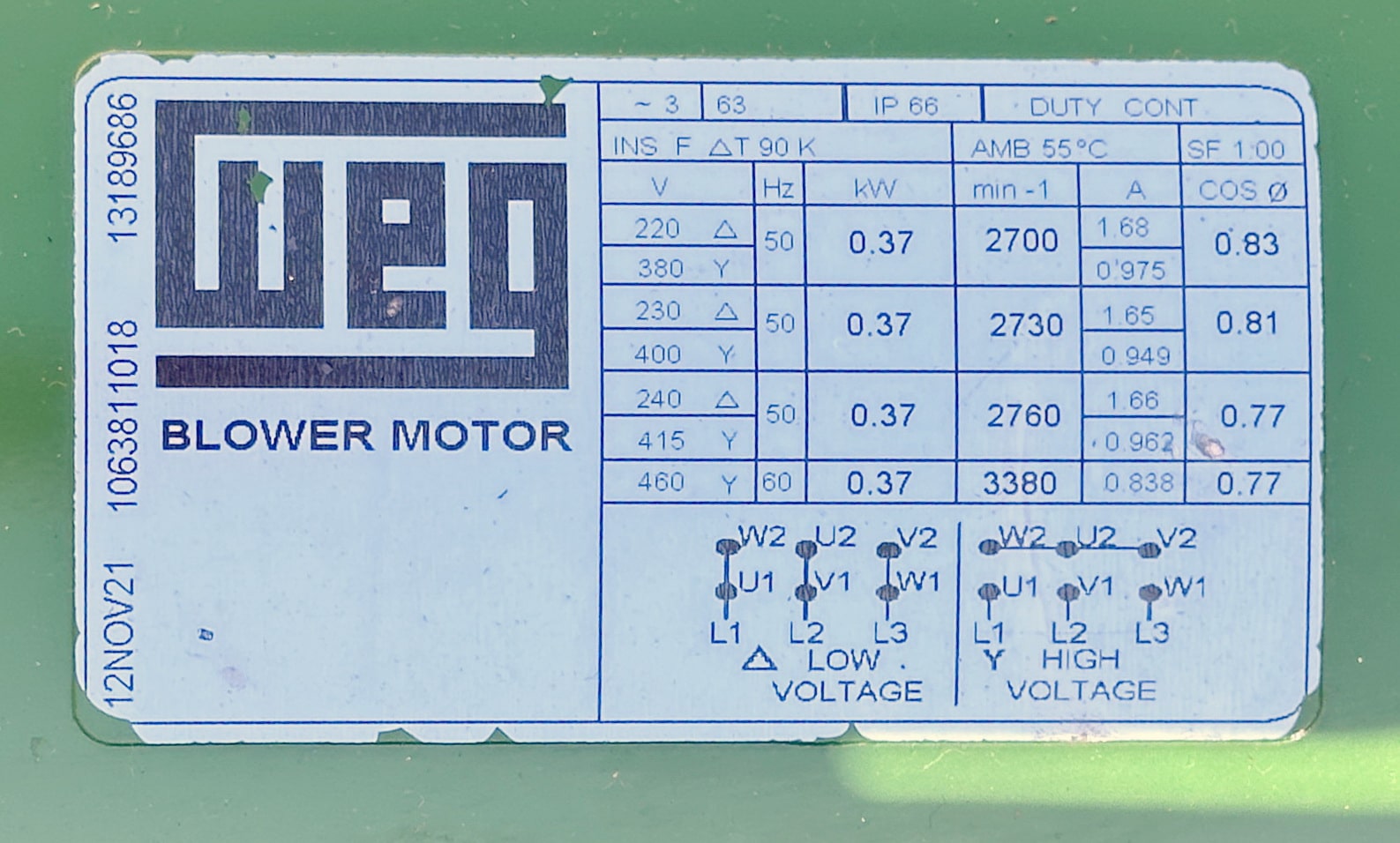

• Blower: 0.37kW WEG
• Coupling: Long with Guard
• Dimensions: 150L

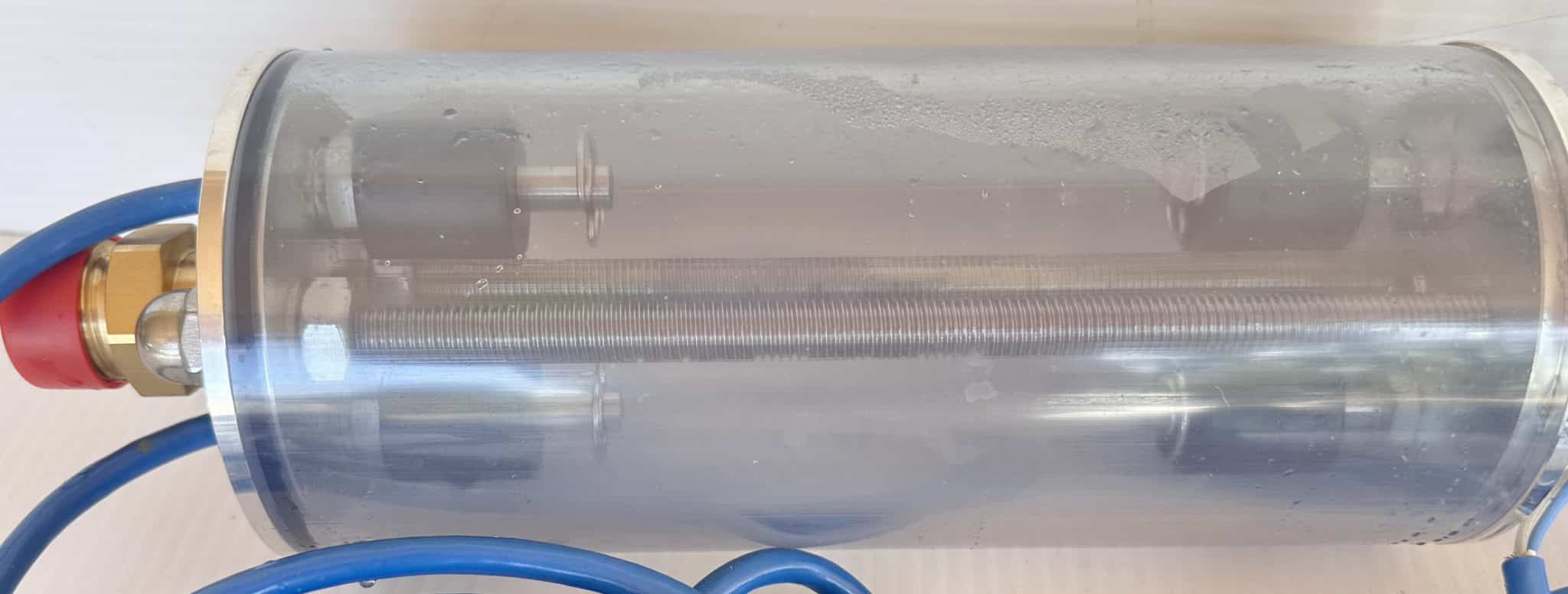

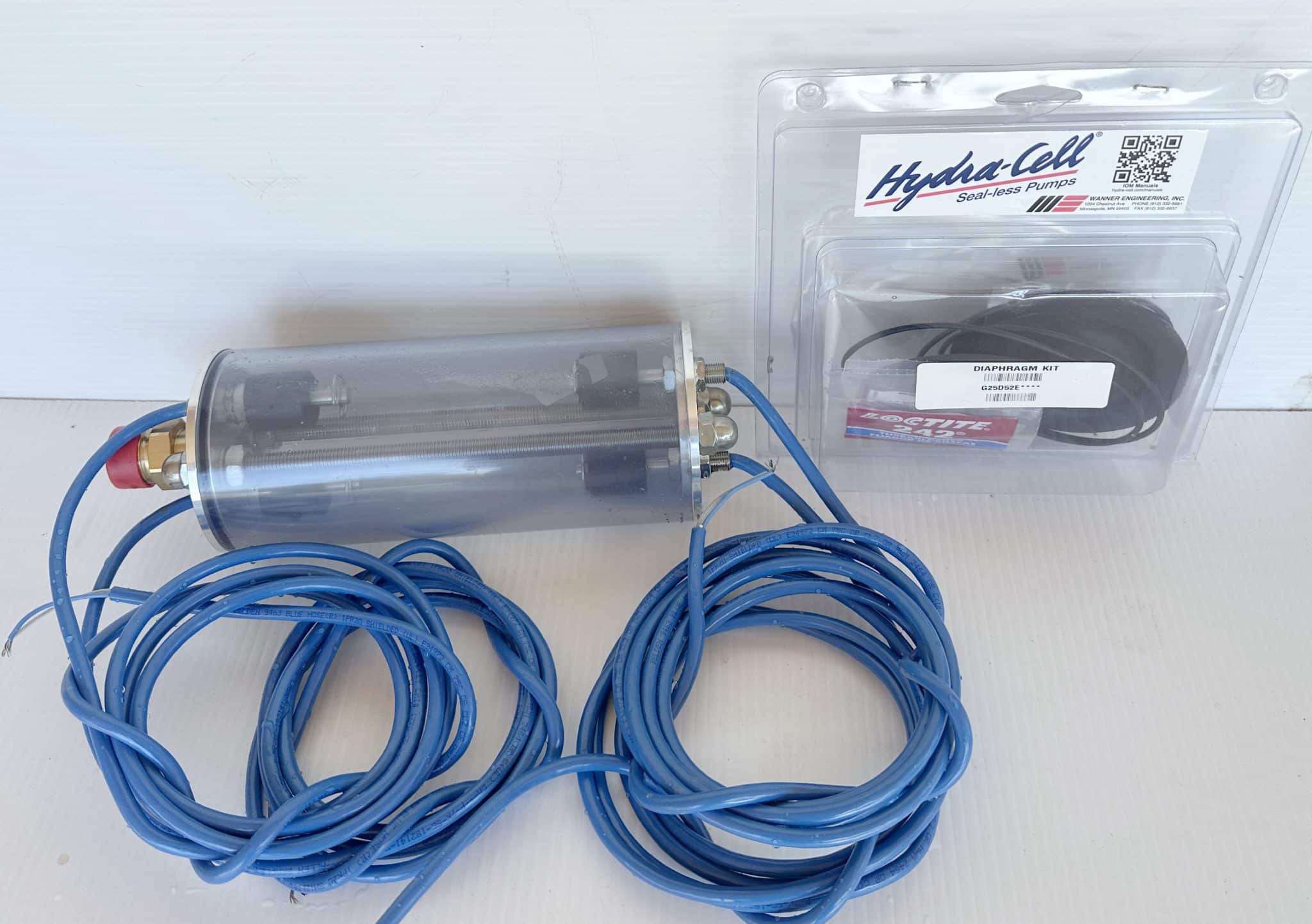

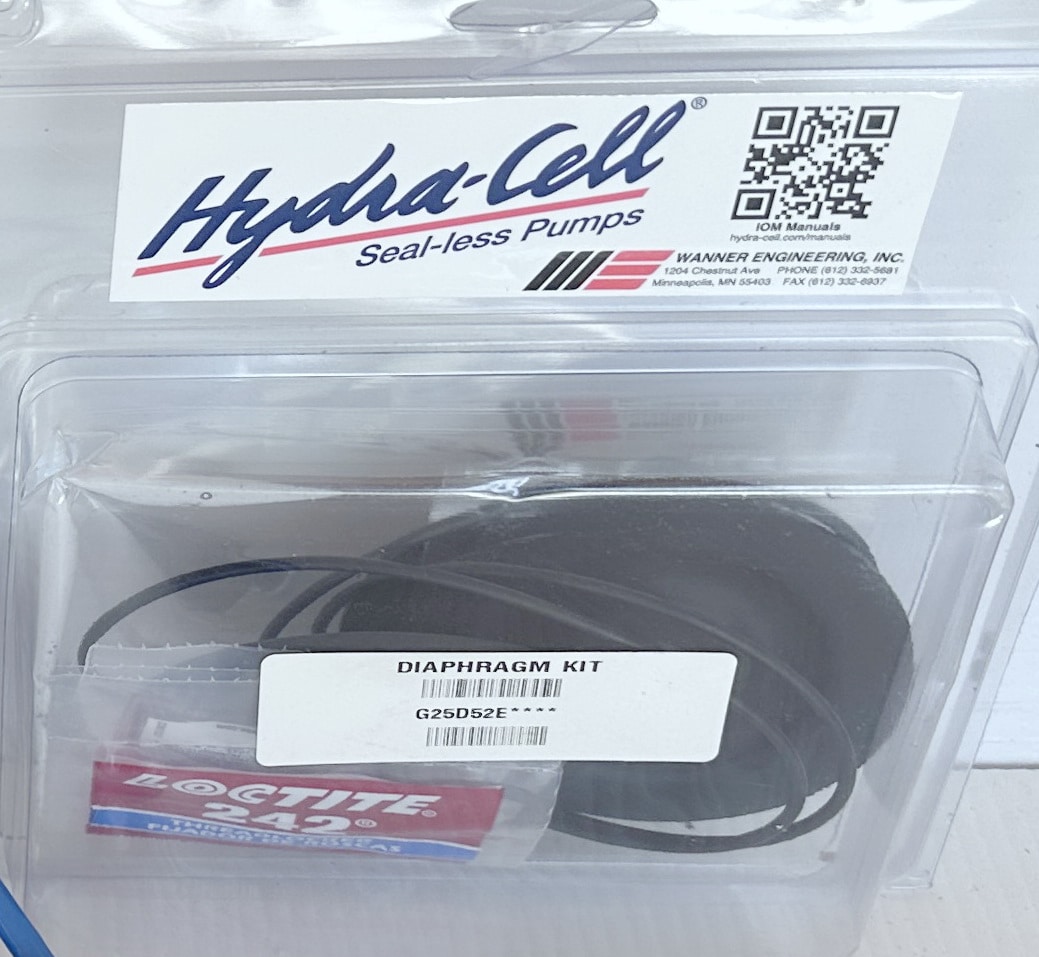

• Accessories: Oil Level Monitor, Spare Seal Kit
• Packaging: crate
• Weight: 180.0Kg

Replacement price on this unit is approximately AUD$25,000

The unit is sold with a 30 Day Warranty.
