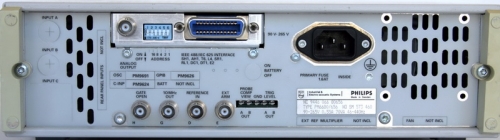

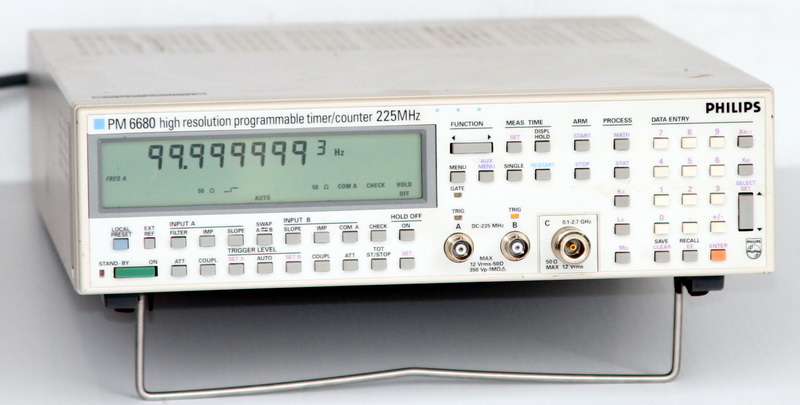

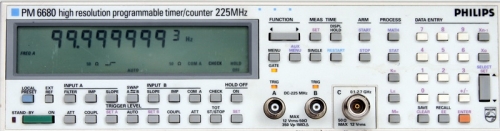

Philips PM6680

SKU1189
In Stock2
PriceAUD $600.00

“The PM 6680 offers an unmatched combination of performance and price that makes it an undisputed value leader in counter timers. With 225 MHz basic frequency range extendable to 2.7 GHz (input C), an impressive array of measurement capabilities, and accuracy to 2×10-8, the PM 6680 is at home in the most demanding applications

FEATURES:

  • 10 digits of frequency resolution per second and 250 ps resolution as a result of high-resolution interpolating reciprocal counting
  • PM9624 0.1-2.7GHz Channel C high frequency input option
  • PM9626 Optional GPIB (SCPI) interface with up to 2 k measurements/s to internal memory”

Specifications:

  • Condition: Used
  • Type: Programmable Timer Counter
  • Make: Philips
  • Model: PM6680/656
  • Serial: SM573460 (or thereabouts)
  • Part: NC944606680656
  • Freq: 225MHz
  • Options: PM9691 – Very High Stability Oven Oscillator Time Base, PM9624 – 2.7GHz HF Input, PM9626 – GPIB incl Analog Output
  • Input: 90-265VAC
  • Weight: 4.0kg

Philips PM6680 Specifications

New price on this unit is approximately AUD$2500.

The unit is sold with a Works on Arrival Warranty.

Used Philips PM6680 High Resolution Programmable Timer Counter 225MHz 2.7GHz Input C, Ovenized Time Base, GPIB For Sale Buy Price
