PCWI WetSponge

These units were purchased new in 2015 for the Wheatstone Gas Project and have be in storage since the end of the project.

It appears to have had little if any use.

“The PCWI Wet Sponge Porosity Detector is designed to non-destructively detect pinholes in coatings up to 500um using the “wet sponge method”. A voltage from the battery supply is transmitted through the probe and dampened sponge attached. Because the instrument’s earth is connected to the substrate, when a flaw is encountered, the conductive path is made and the alarm sounds. The unit features three test voltage options; 9V for coatings up to 300um, 67.5V for coating assessment to ASTM standards, and 90V for coatings up to 500um.”

Specifications:

• Condition: Used
• Type: Porosity Detector
• Make: PCWI
• Series: Compact
• Model: Wet Sponge

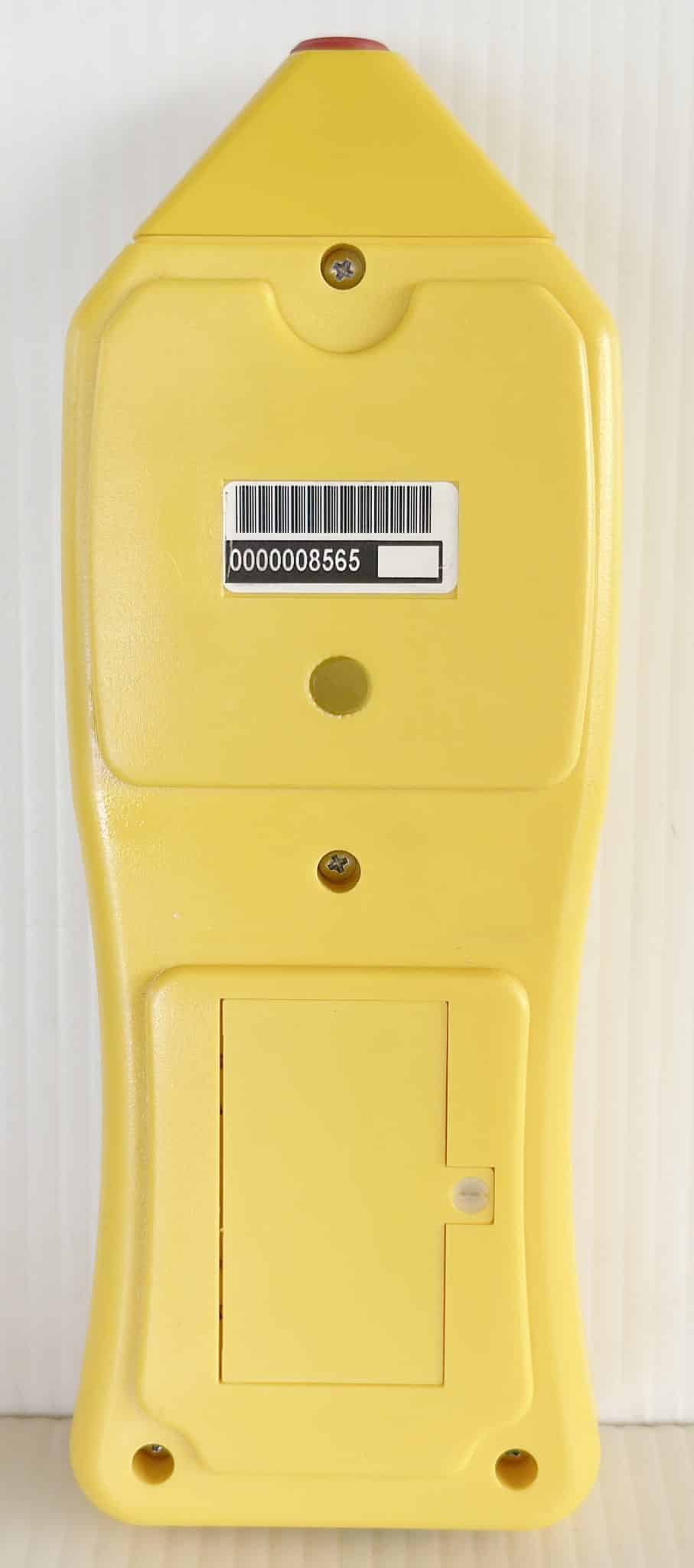

• Serial: 0000008565
• Voltages: 9V, 67.5V & 90V
• Thickness: up to 500um
• Accuracy: +5% to -10%
• Supply: 9V Battery

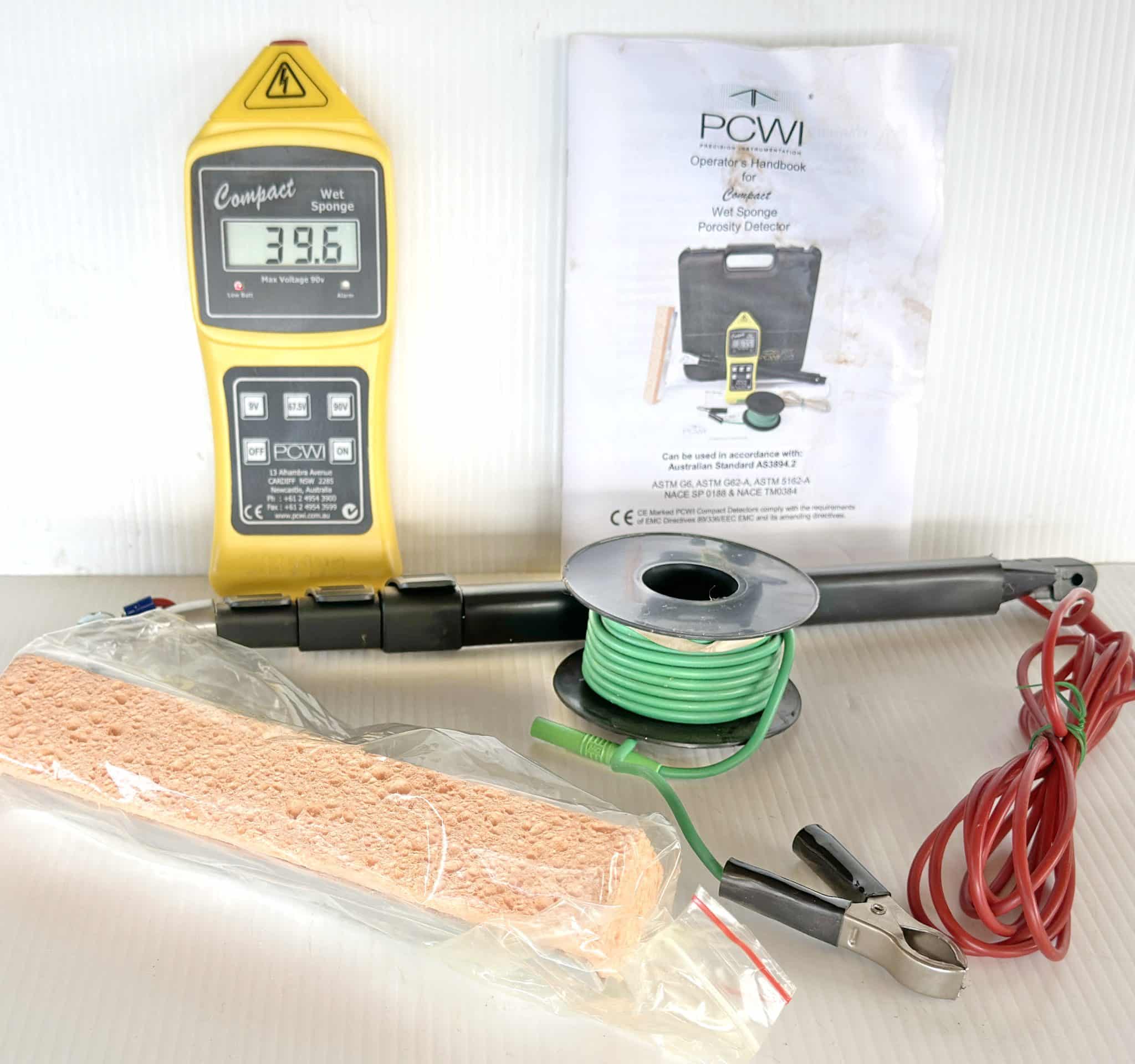

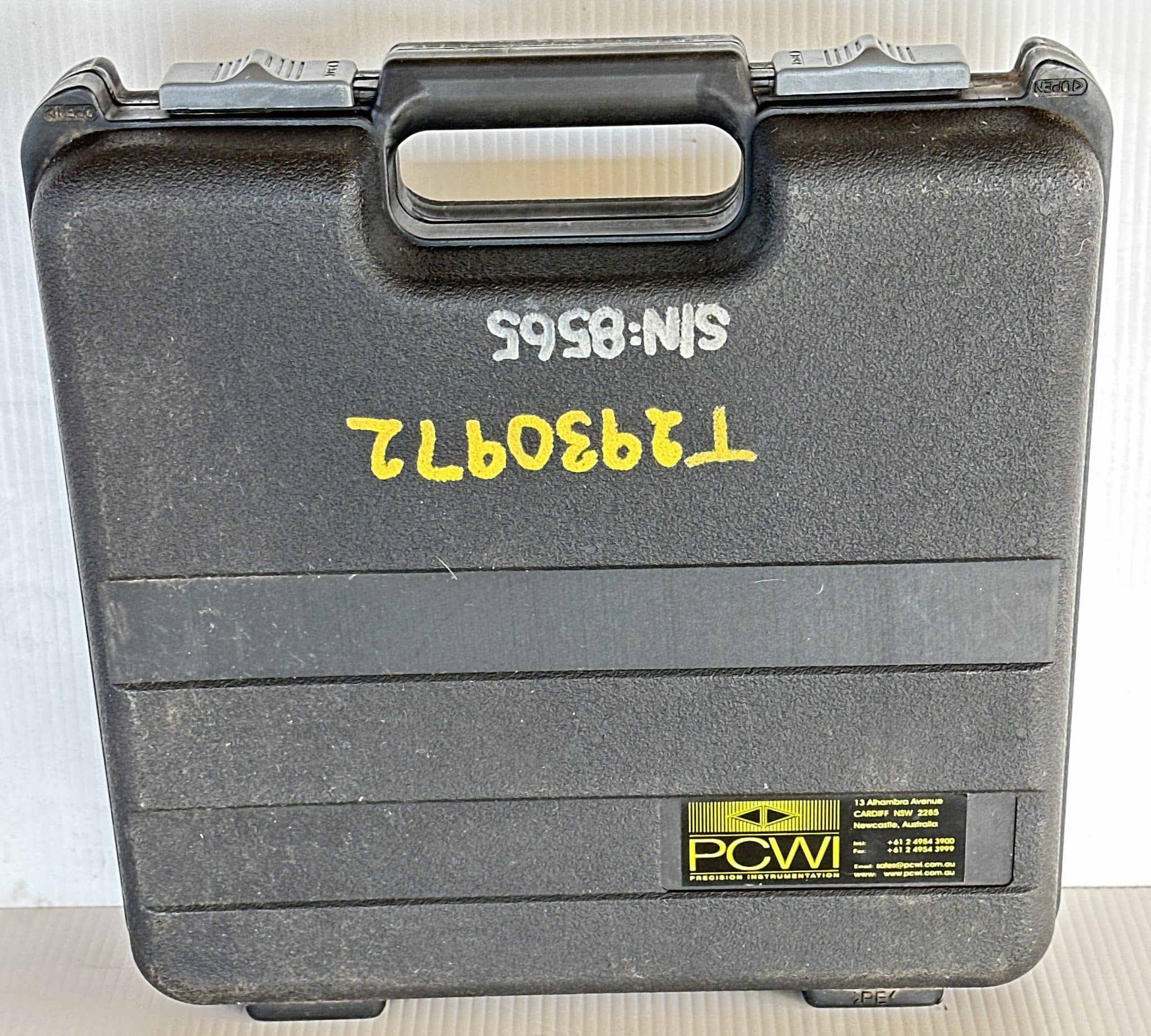

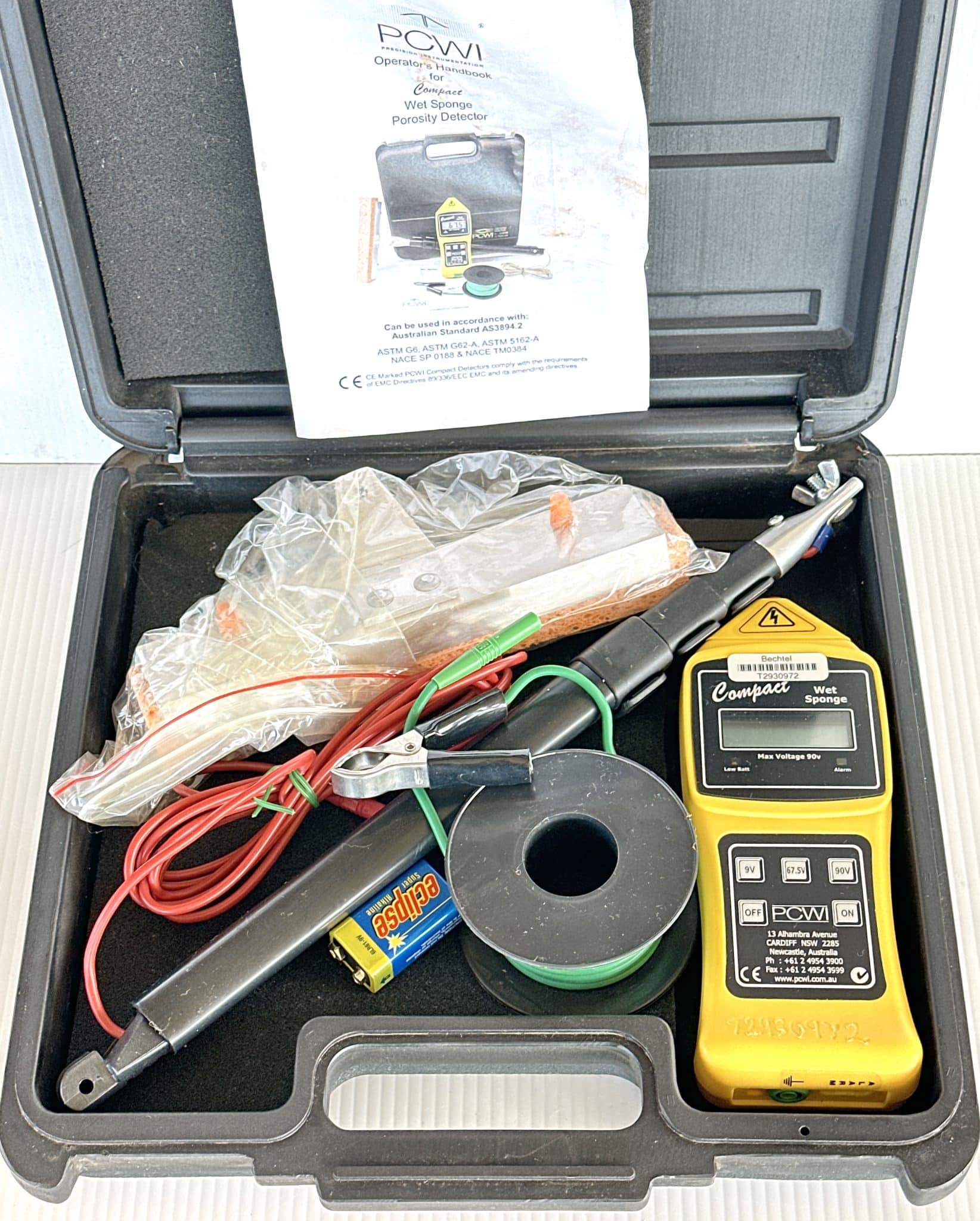

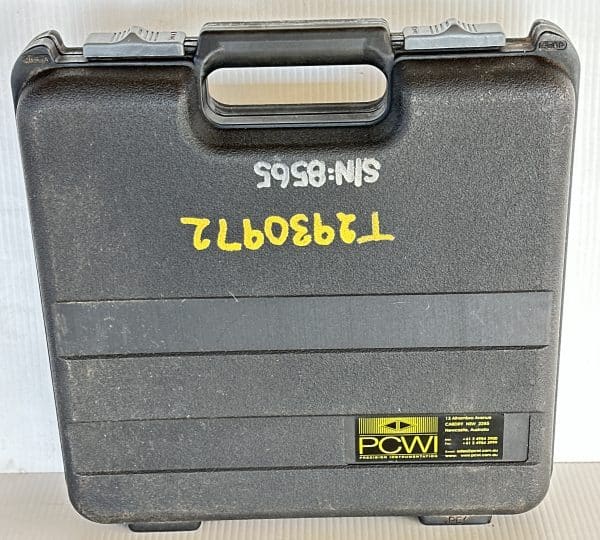

• Accessories: Extendable Wand, Sponge, Earth Cable, User Manual, Hard Case

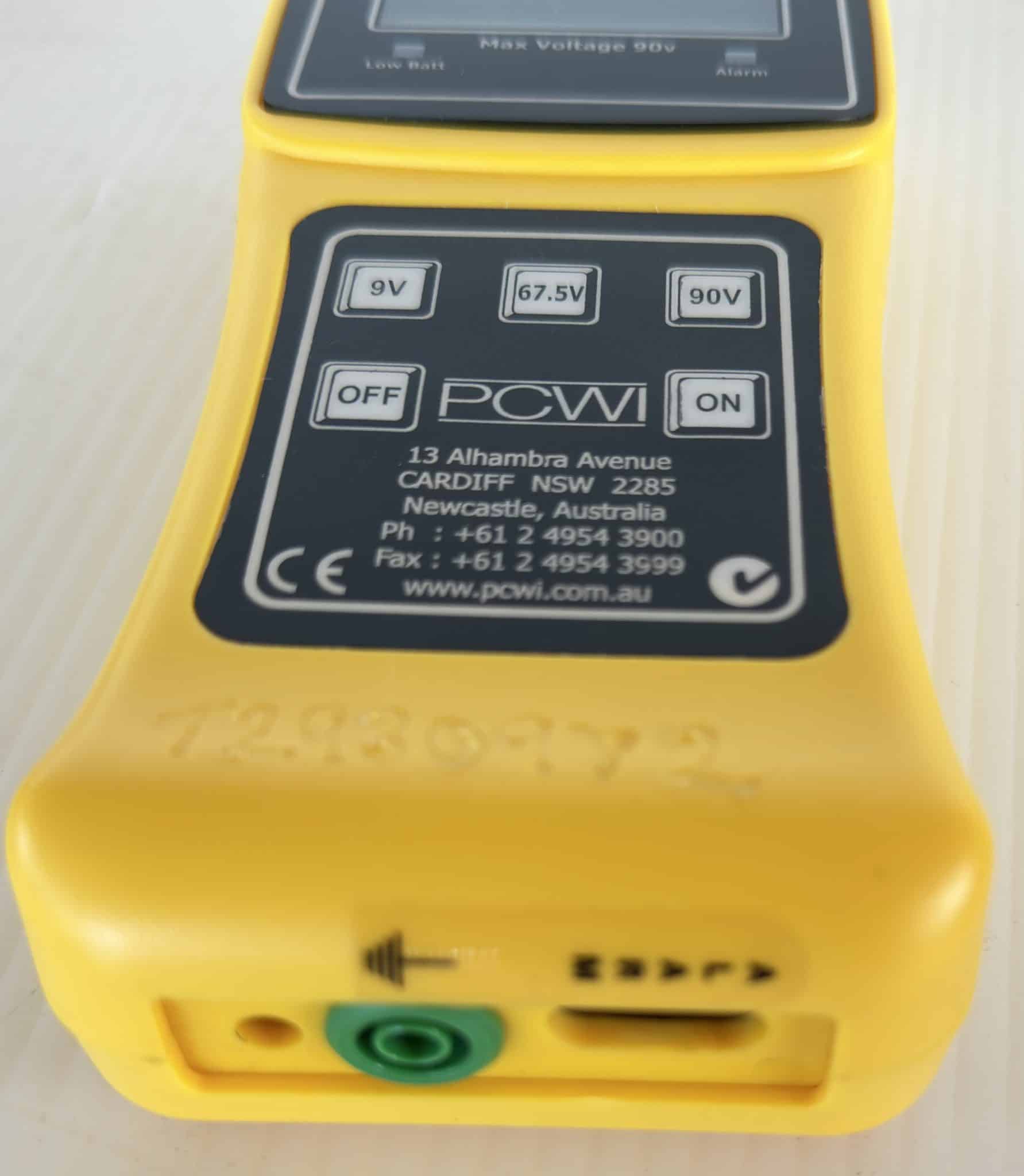

• Engraving: “T2.930972” on front bottom
• Weight: 2.1kg

Replacement price on this item is approximately AUD$600

This item is sold with a 30 Day Warranty
