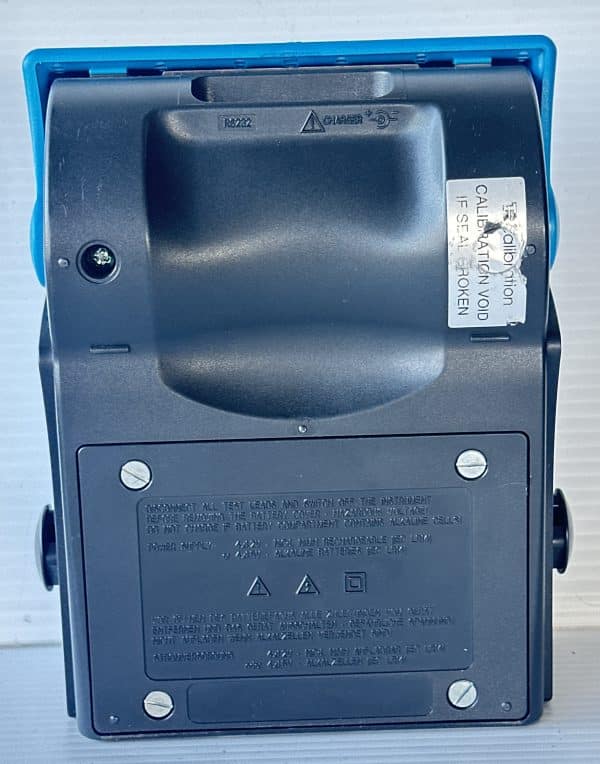

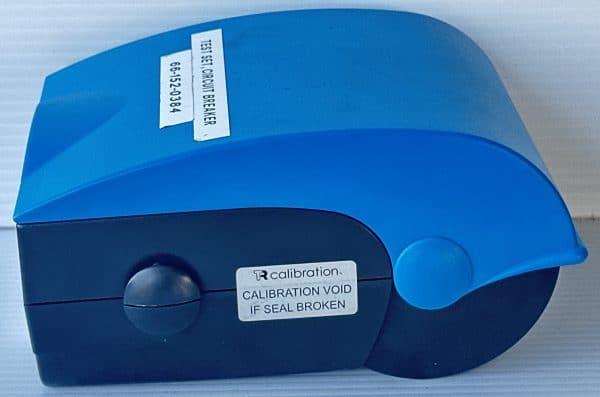

Metrel MI2121

Features:

Quick testing of RCD‘s (10, 30, 100, 300, 500 mA) both standard and selective type, AC types
Test current multipliers of x 0.5, x 1, x 5 for checking of a trip out time on limit current values.
Selectable phase angle 0 degree (positive) and 180 degrees (negative).
High resolution ‘ramp test‘ to measure the actual trip out current.
Measuring of trip out time at nominal differential current according to the standards.
Contact voltage measurement to ensure good connection of PE conductors.
Measurement of voltage between line, neutral and PE conductors.
Measurement of LOOP (EARTH) resistance without tripping the RCD.
Warning indication of incorrect or out of limit results.
Auto power-off
RS 232 serial port for transfer of measured values to a PC.”

Specifications:

Condition: Used
Type: RCD Loop Tester
Make: Metrel
Series: SmarTec
Model: MI2121-ADF RCD (FI)
Serial: 14065724
Last Cal: Nov23
Supply: 4 x C-cell Batteries
Accessories: User Manual, 240V GPO Lead, Soft Case
Standards: EN / IEC 61557-6, DIN / VDE 0413-6, DIN / VDE 100, BS 7671,16th Edition, CEI 64.8 , EN / IEC 61010-1
Weight: 2.5kg
