Megger MTO210
| SKU | 9247 |
|---|---|
| In Stock | 1 |
| Price | AUD $9,000.00 |
“The Megger MTO210 is a line-operated transformer ohmmeter for measuring very low DC resistance in transformer windings, rotating-machine windings, contacts, connections and control circuits. It is primarily used for transformer winding resistance testing and on-load tap-changer testing. Megger describes it as a two-channel transformer ohmmeter with 1 µΩ to 2000 Ω direct digital reading, up to 10 A DC test current, 0.25% accuracy, integrated demagnetisation and fast automatic safety discharge.”
Specifications:
- Condition: Used
- Type: Transformer Ohmmeter and Winding Resistance Tester
- Make: Megger (USA)
- Model: MTO210

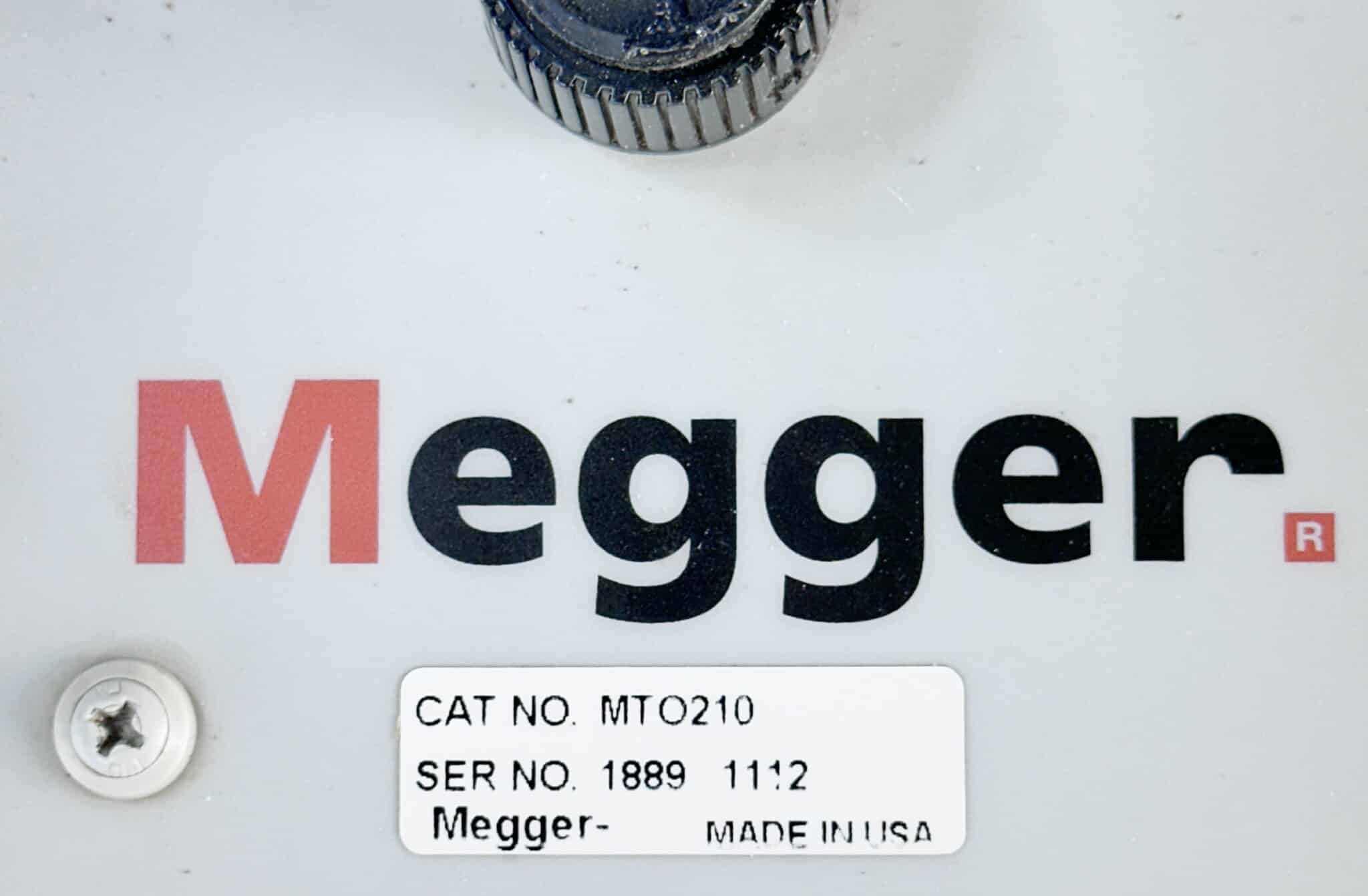

- Serial: 1889-1112
- Resistance: 1mΩ to 2000Ω
- Accuracy: 0.25%
- Channels: Dual
- Memory: Internal
- COmms: RS232
- Current: 10mA, 100mA, 1A,10A (10A max)
- Voltage: 40VDC open circuit, Measurement up to 20VDC
- Output: 200VA cont
- Supply: 85-264VAC, 720VA 50/60hz

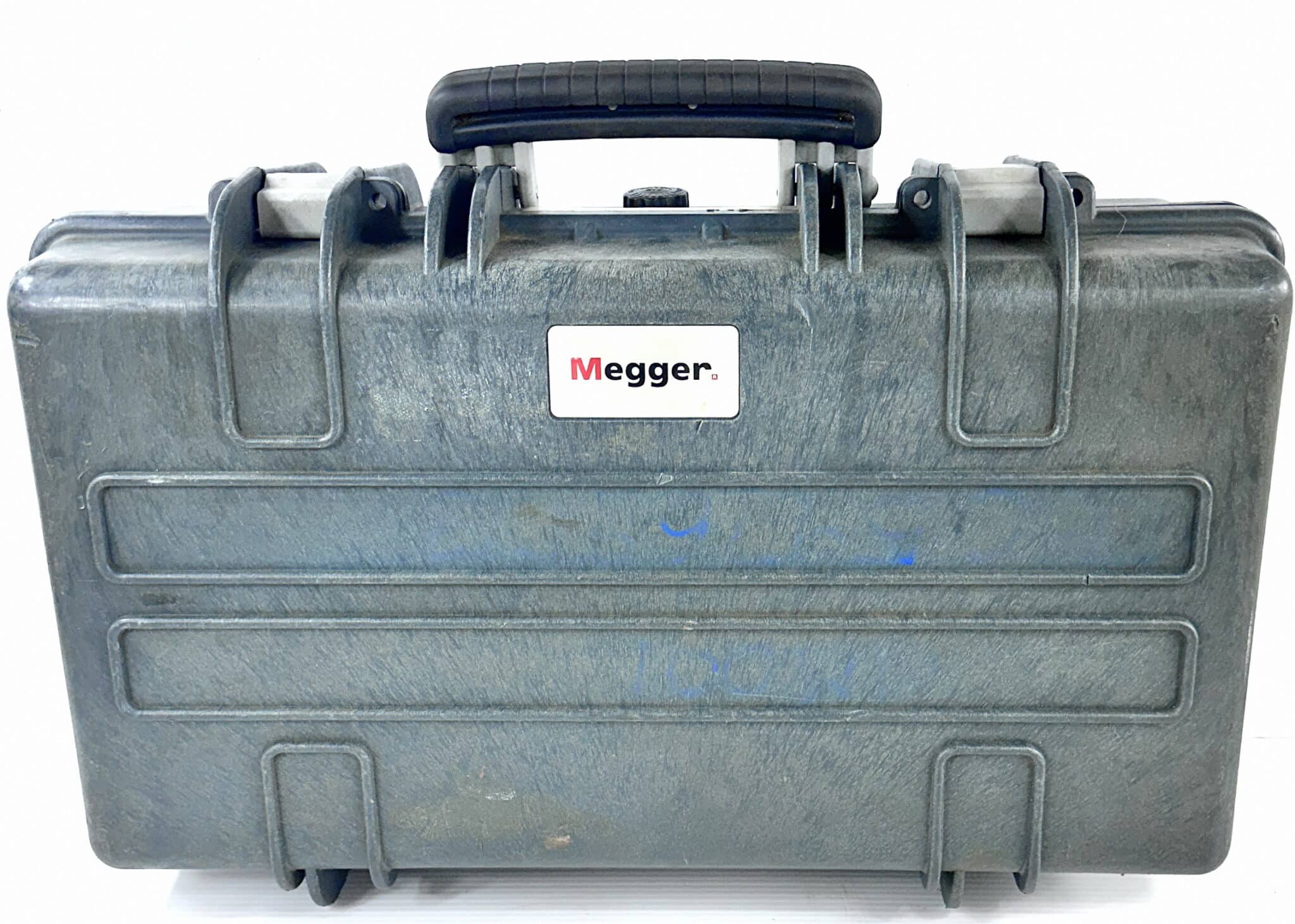

- Accessories: Hard Case
- Markings: “MM002” engraved inside of lid
- Weight: 13.3kg
Replacement price on this item is approximately AUD$29,000
The unit is sold with 30 Day Warranty.

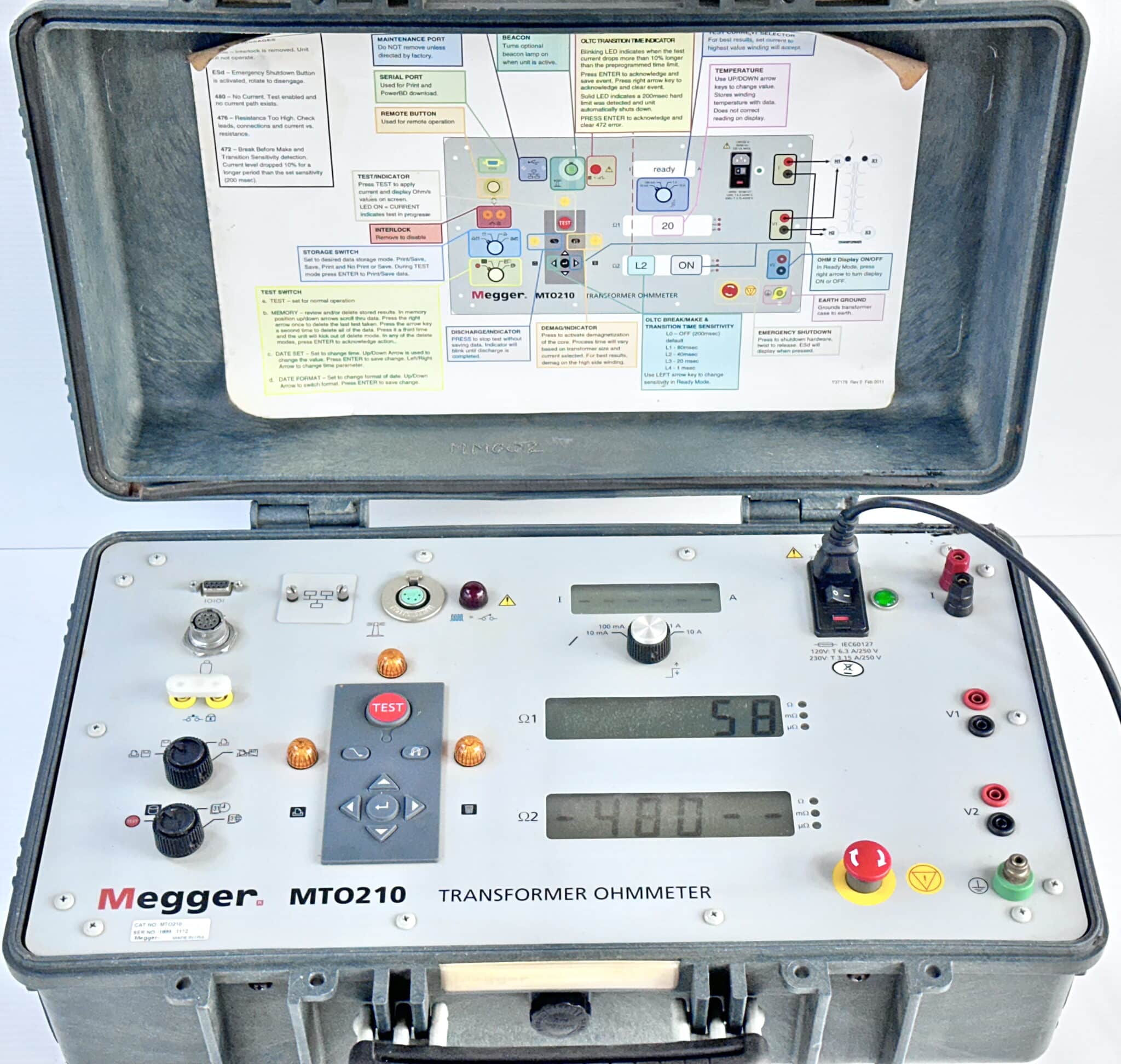

Used Megger MTO210 Transformer Ohmmeter
Product Gallery
