Matelec FPC82243

Specifications:

• Condition: Used

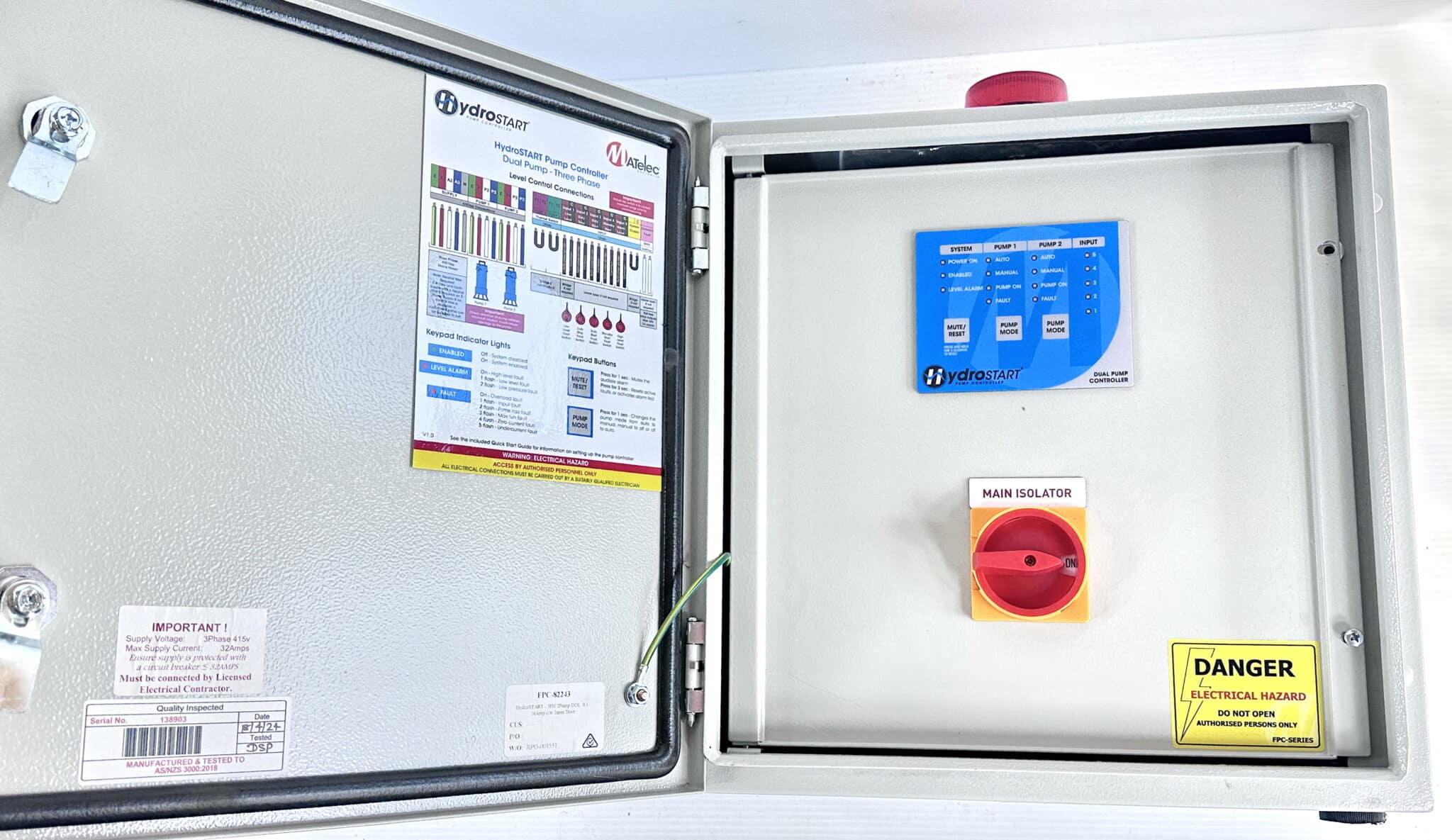

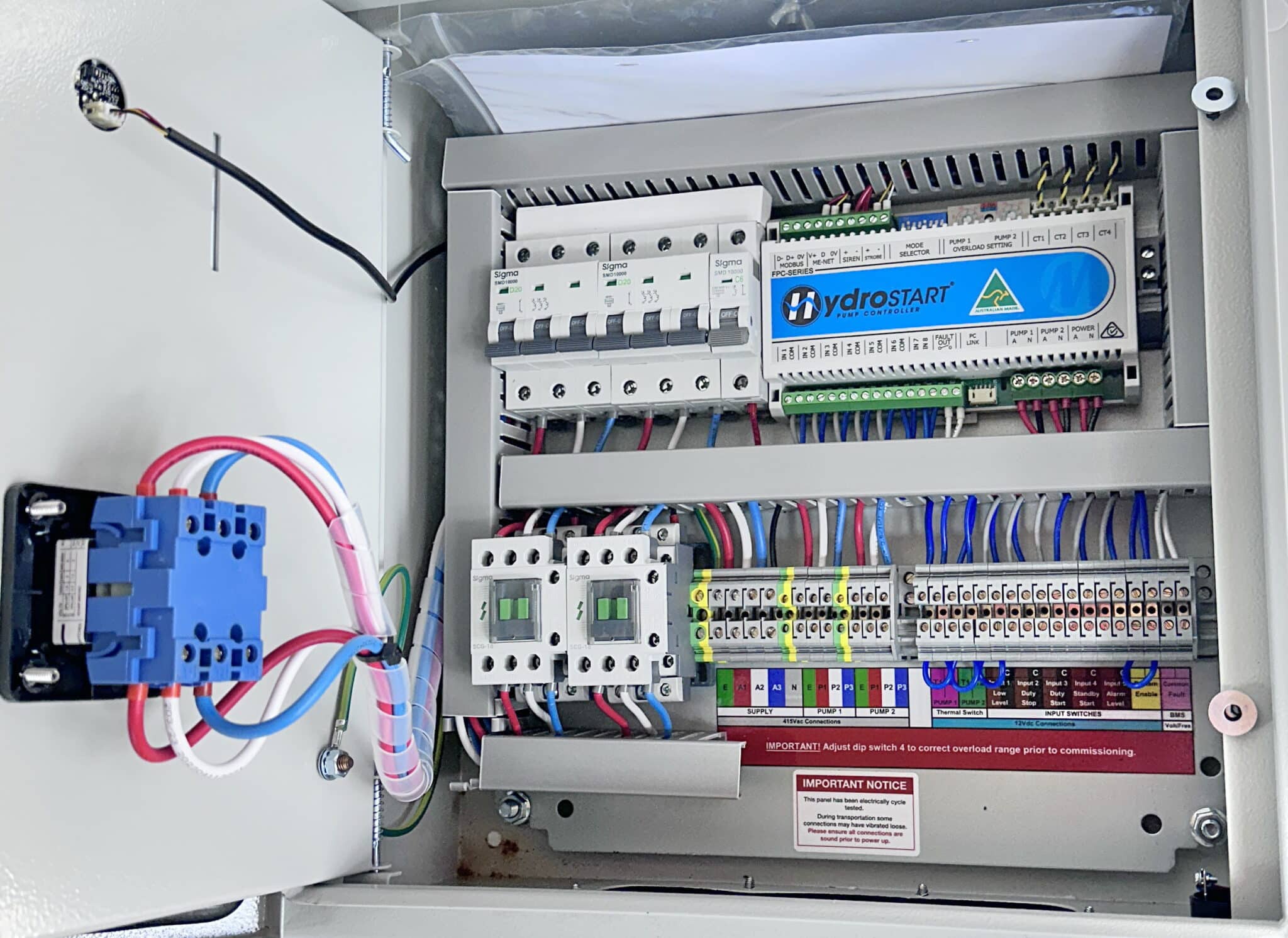

• Type: DOL 16A Dual Pump Starter Enclosure
• Make: Matelec
• Series: HydroStart

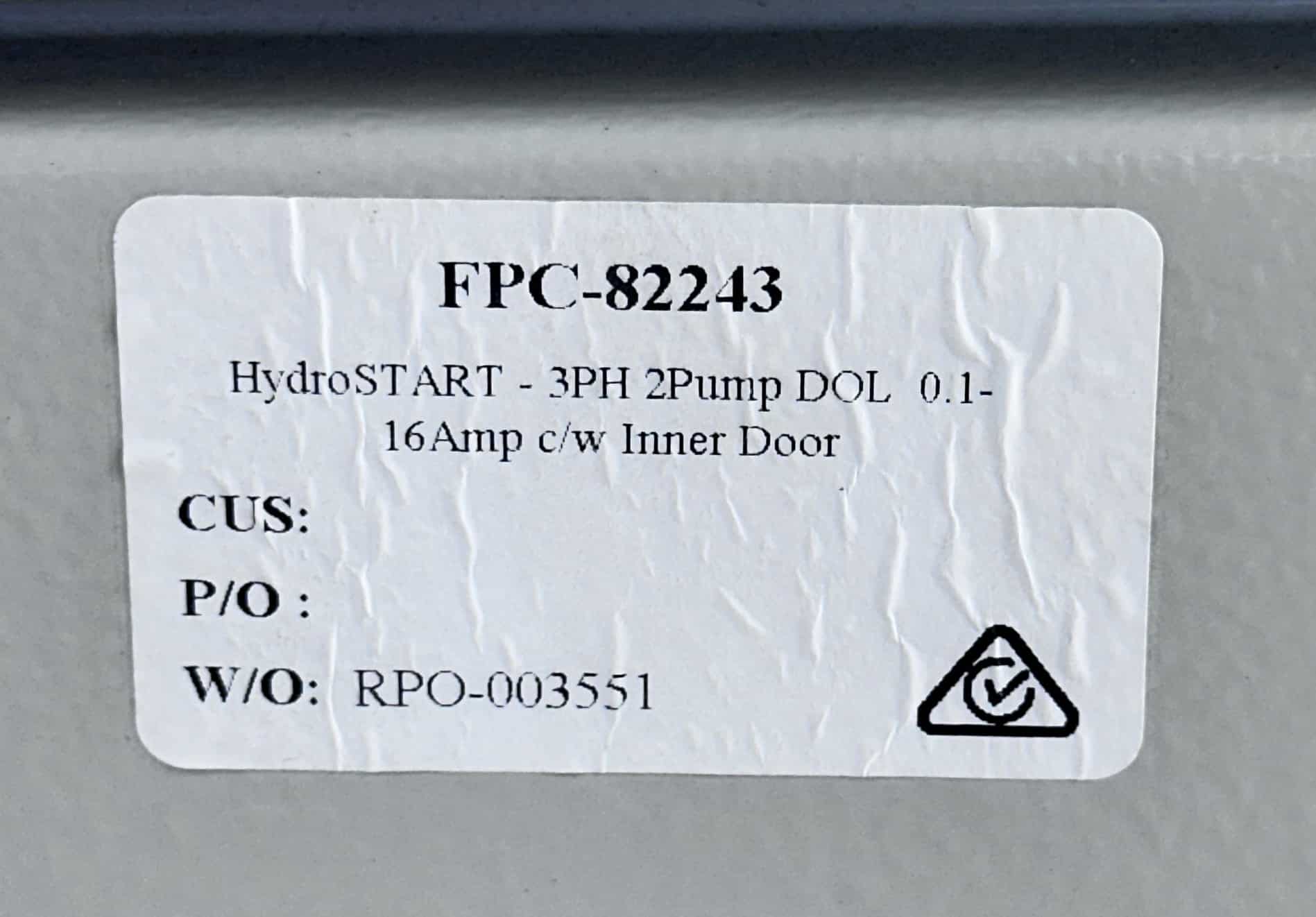

• Model: FPC-82243
• Pumps: 2
• Rating: 3ph 16A
• Overload: Low Range (0.1–6 A) or High Range (5–16 A) selectable

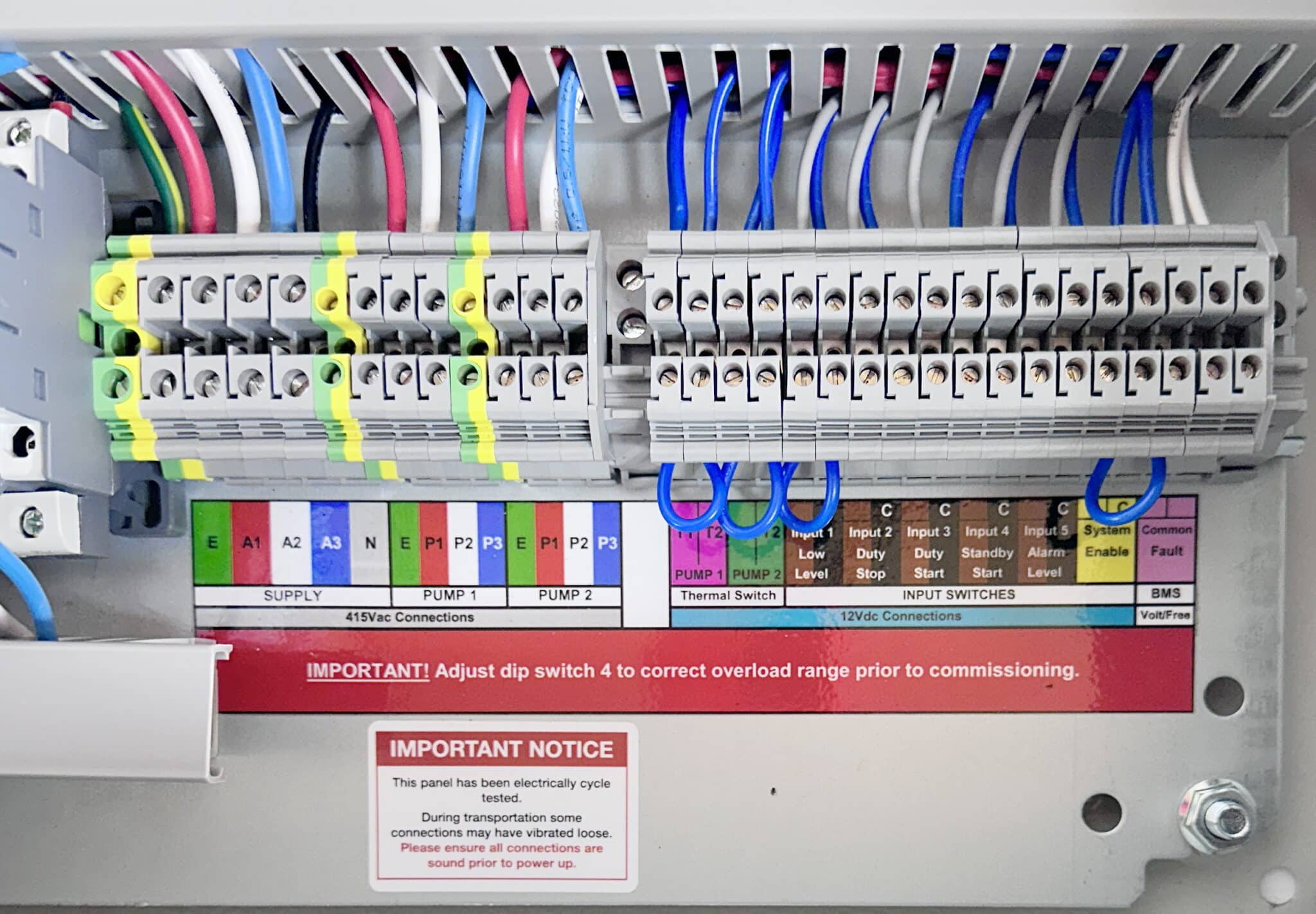

• Inputs: 6x digital inputs for float/pressure switches, prime loss flow switch, or system enable
• Outputs: 2 pump supply outputs, BMS volt-free common fault output

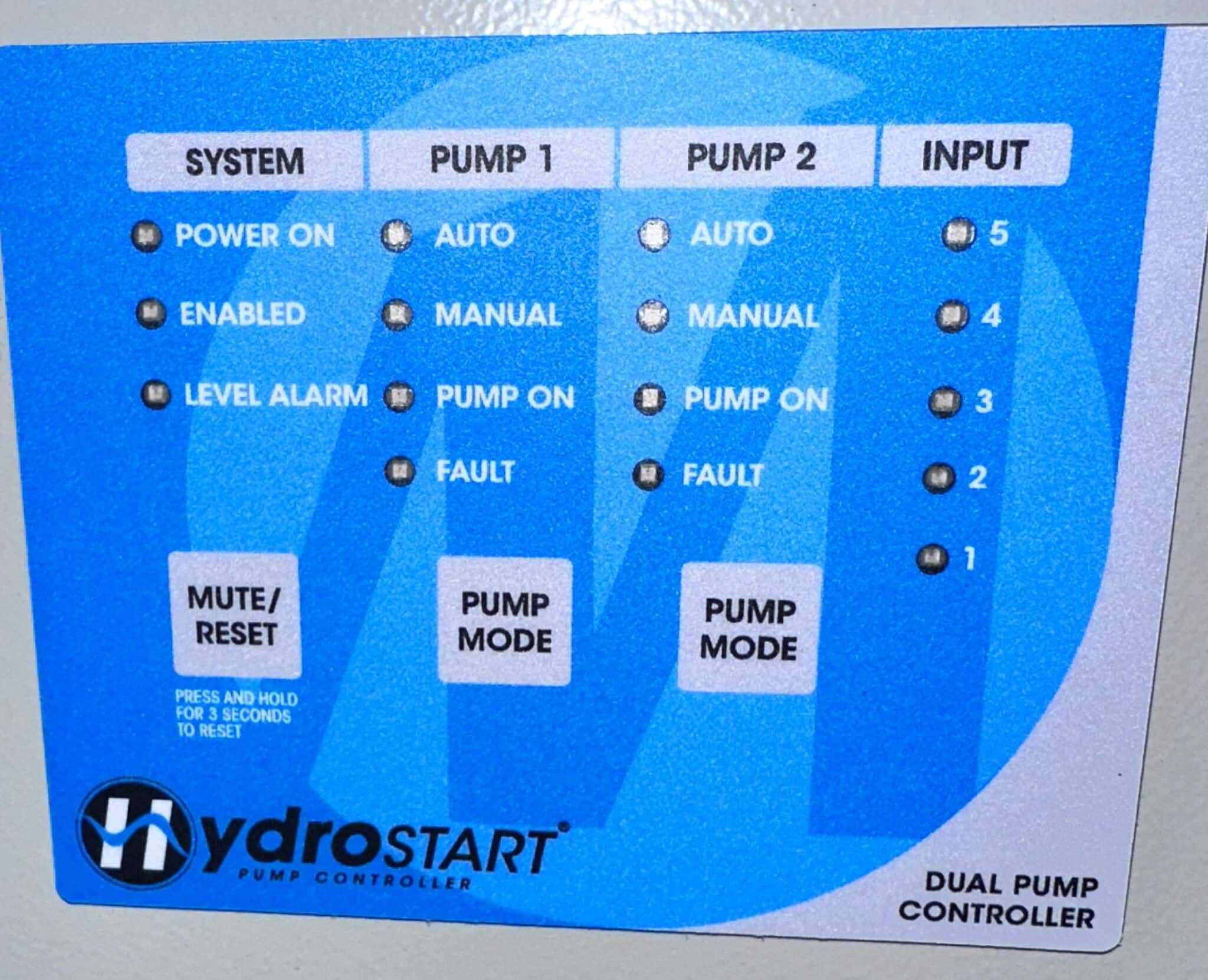

• Alarms: Strobe and Buzzer
• Modes: Level, Pressure, Duty SHaring, Staggered, Manual, Static
• Protection: Hi Level, Lo Level, Lo Press, Prime Loss, Pump Anti-Sieze, Current Sensing

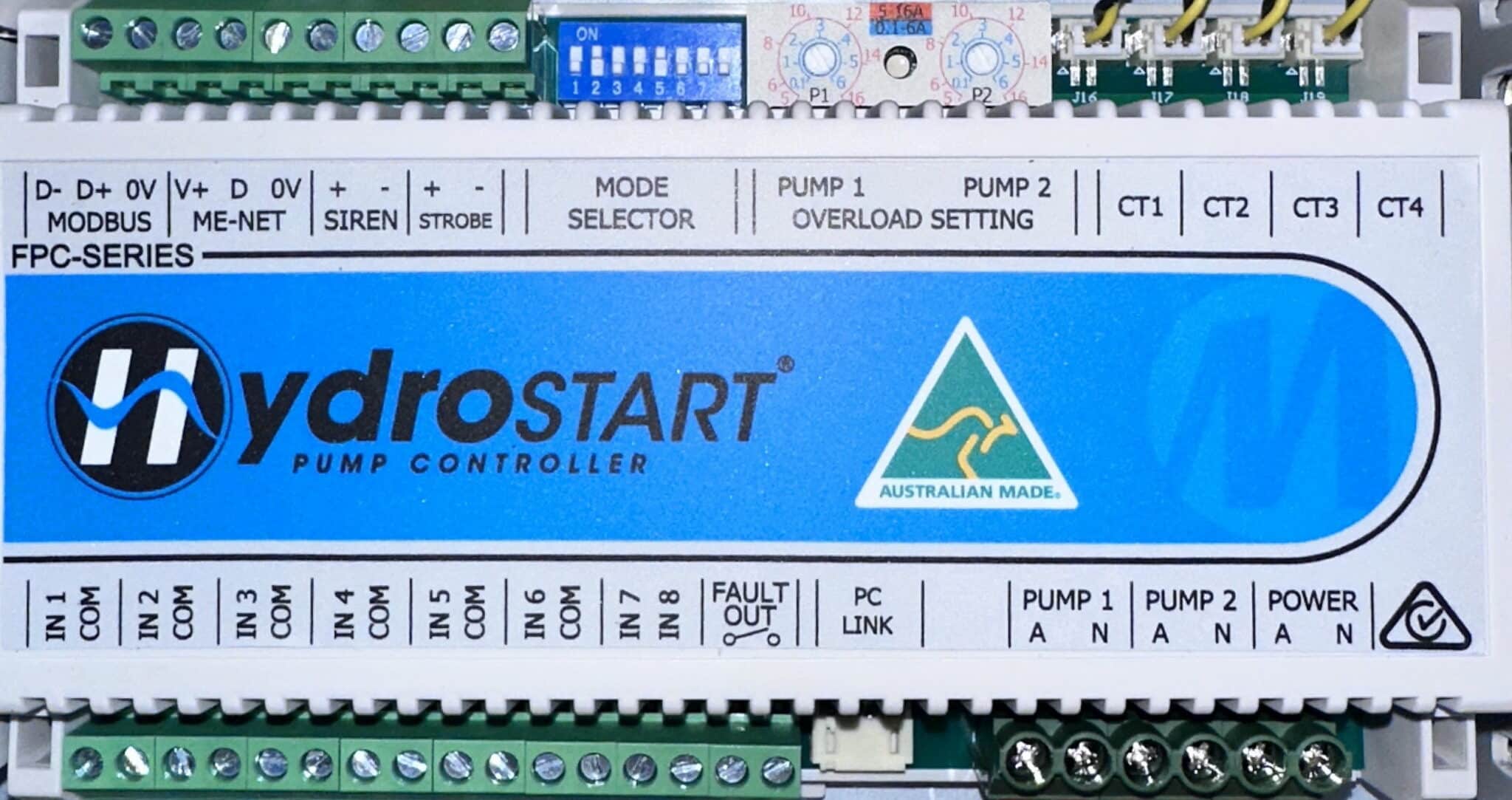

• Communications: Modbus RTU RS485

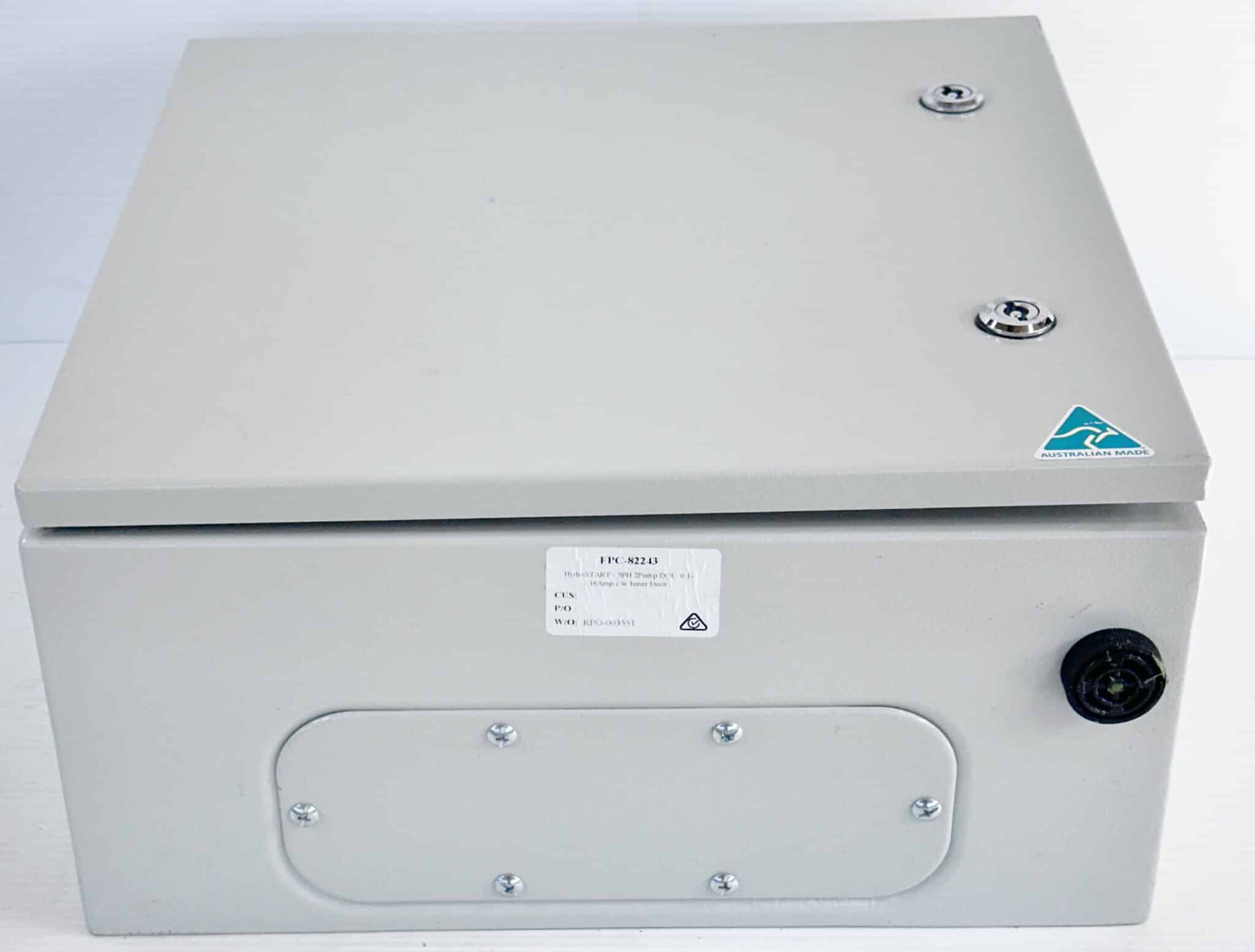

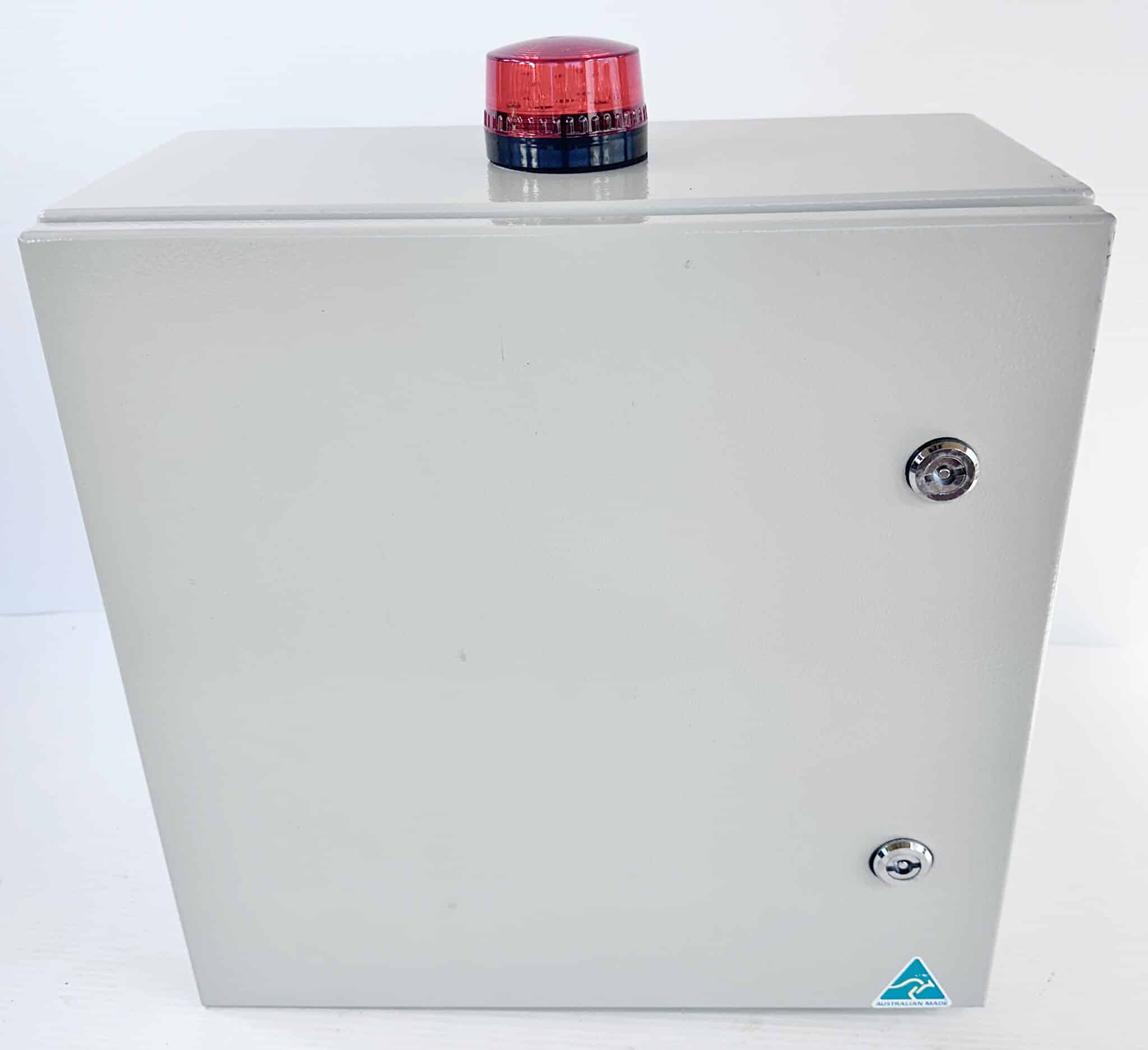

• Enclosure: IP56, Steel, 400×300×150 mm
• Accessories:
• Packaging: Original
• Weight: 9.8kg

Replacement price on this unit is approximately AUD$1975

The unit is sold with a 30 Day Warranty.
