Marconi 2945A

SKU8361
In Stock1
PriceAUD $4,000.00

“The Aeroflex/IFR/Marconi 2945A is a portable Communications Service Monitor for carrying out production, routine and maintenance testing on radio transmitters, receivers and two way radio  communication equipment. The Service Monitor contains modules to provide facilities equivalent to the following instruments:-RF generator, two audio generators, specialised tones generator, RF power meter, modulation meter, RF counter, AF counter, AF voltmeter, distortion meter, large screen digital oscilloscope, spectrum analyzer and monitoring receiver. Distortion measuring filters, AF post demodulation filters and IF passband filters, are built in for inclusion in relevant measurement paths.”

Specifications:

  • Condition: Used
  • Type: Portable Communications Service Monitor
  • Make: Marconi, IFR, Aeroflex
  • Model: 2945A
  • Serial: 133168-034
  • Sware Ver: 44533-462
  • Cell Ver: 44533-440
  • Frequency: 400 kHz to 1.05 GHz,
  • Resolution: 10 Hz
  • Power: 150W
  • Options: Analog System Card, Memory Card, Real Time Clock, GPIB Interface, SSB Option, 600Ω Audio Interface
  • Accessories: Nil
  • AC Input: 100-240VAC
  • DC Input: 11-32VDC
  • Weight: 13.0kg

Replacement price of this unit is approximately AUD$

The item is sold with a 30 Day Warranty.

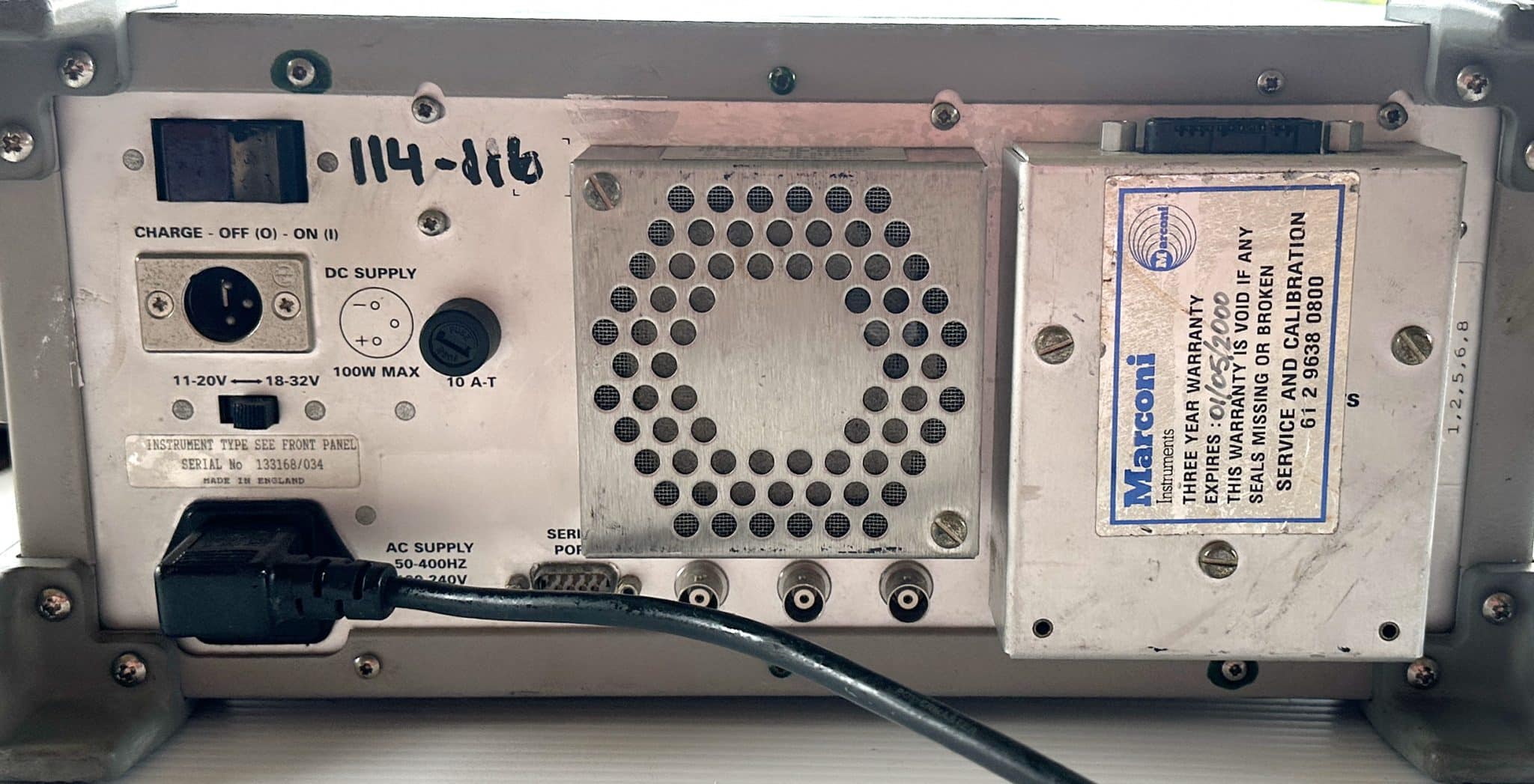

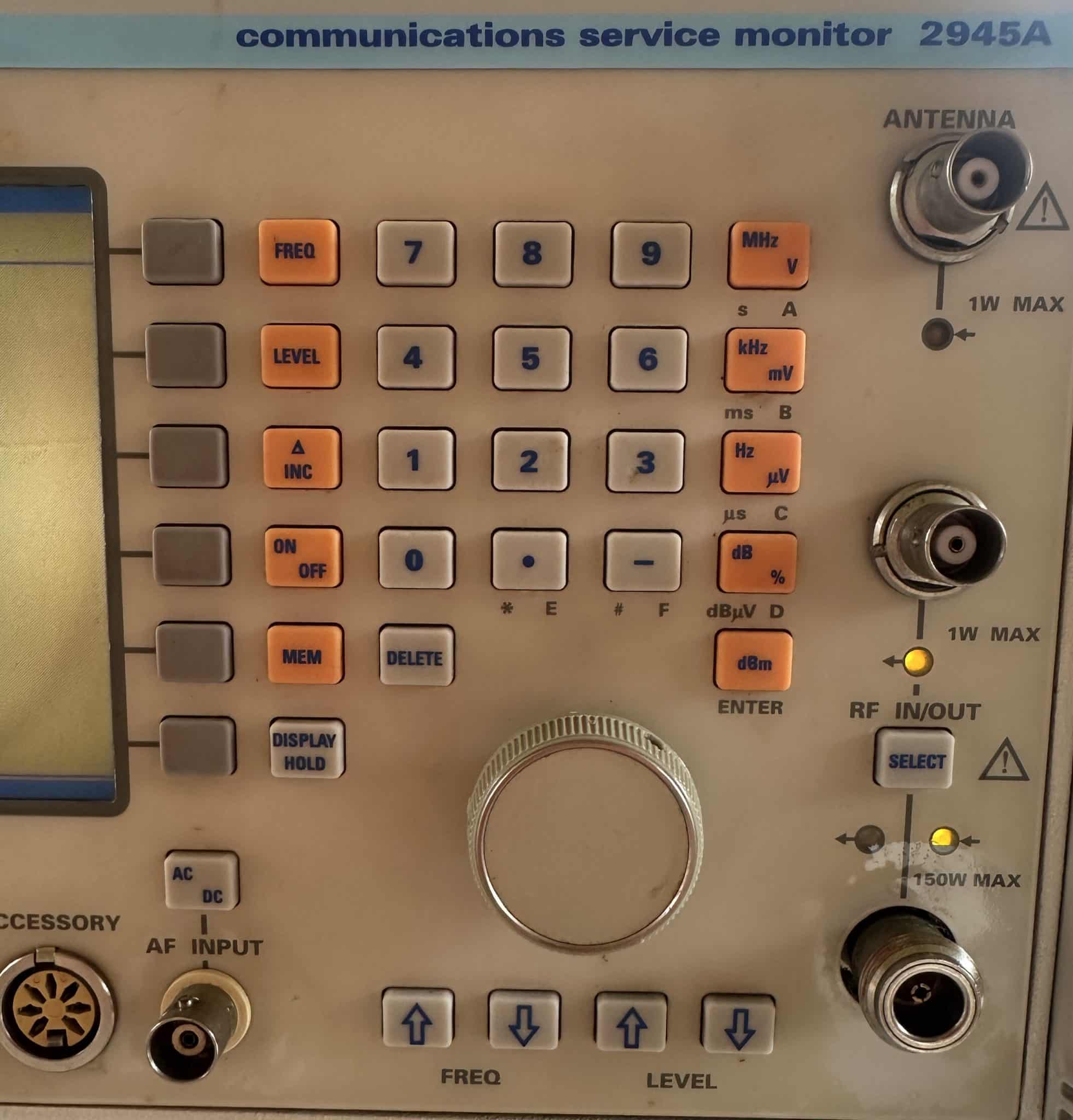

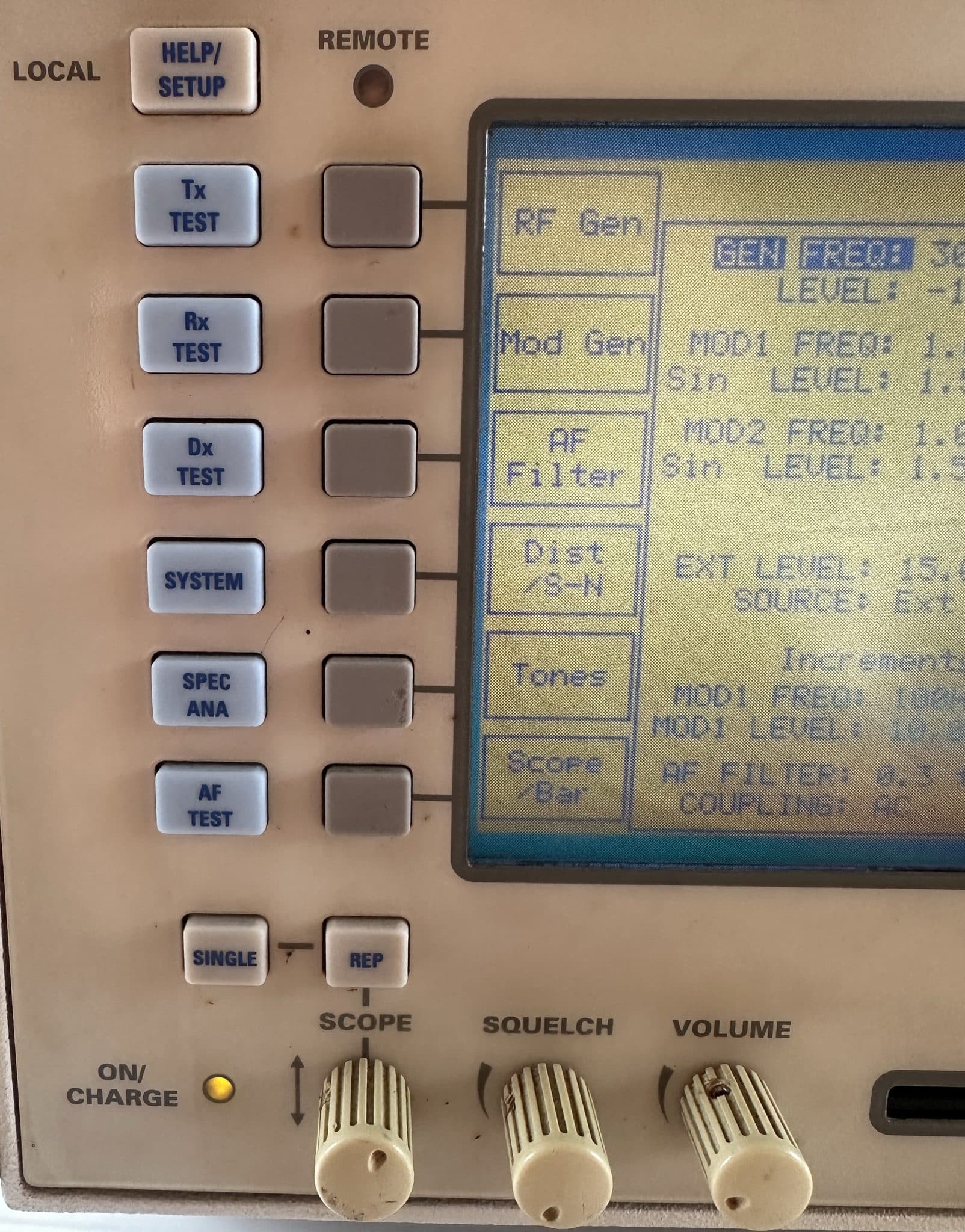

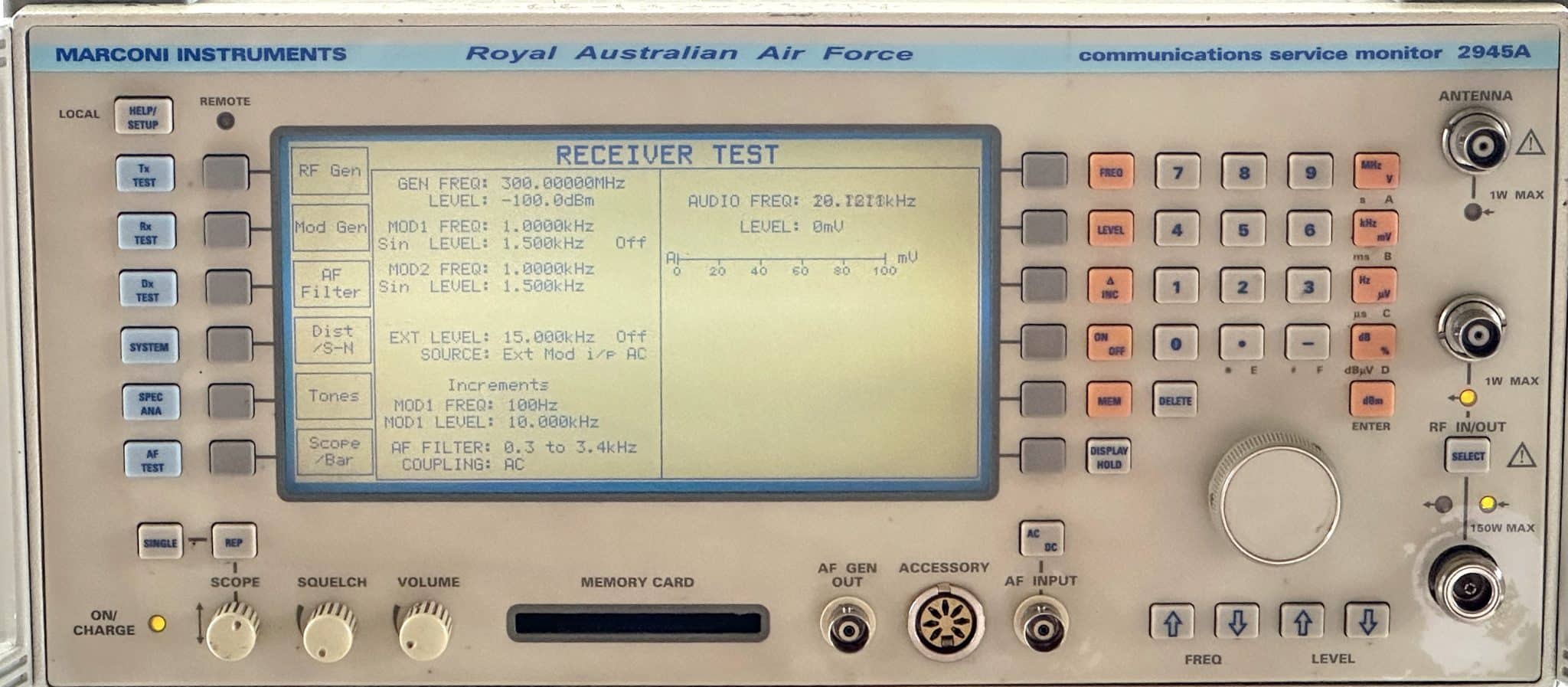

Used Marconi 2945A Portable Communications Service Monitor
