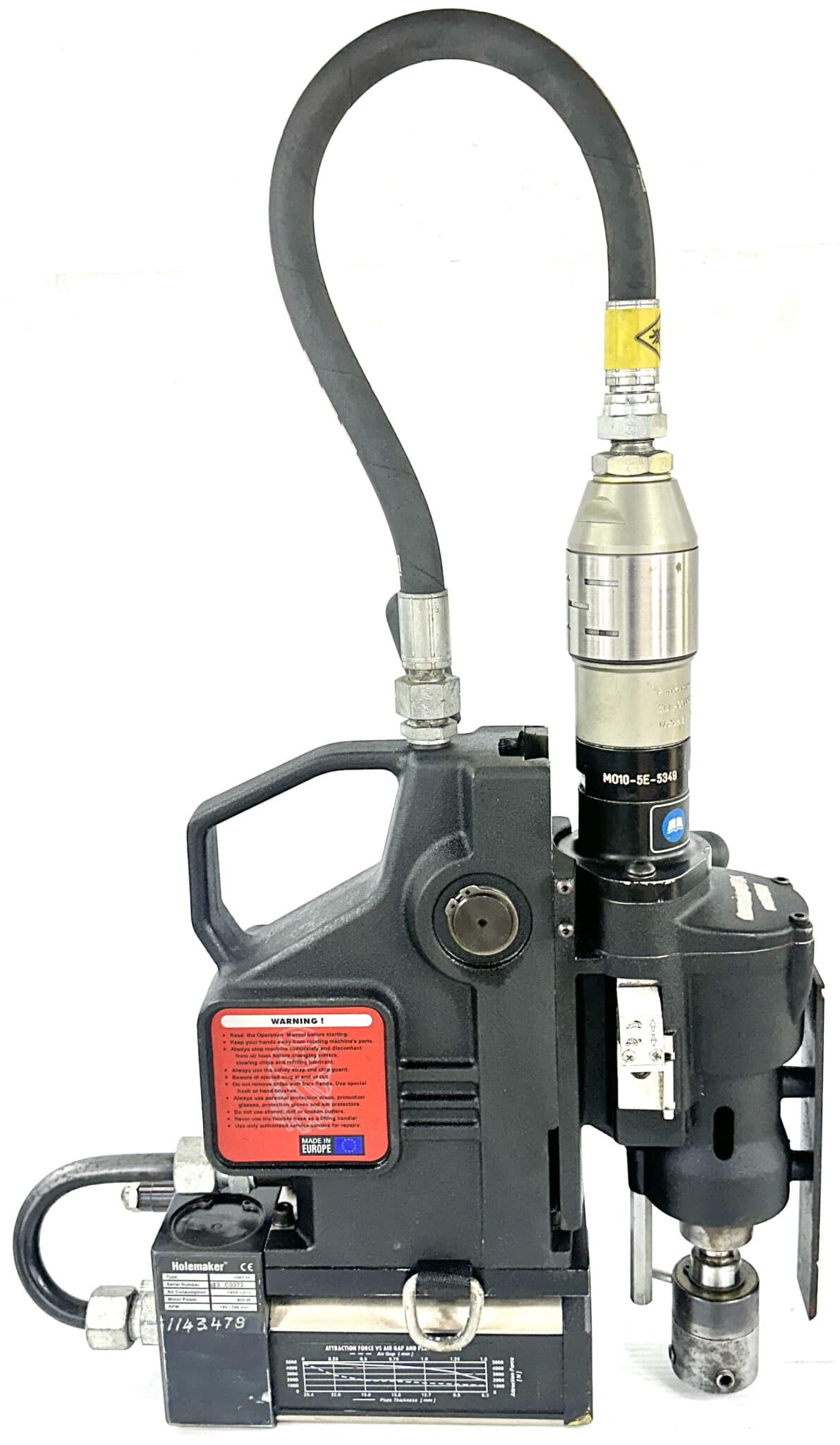

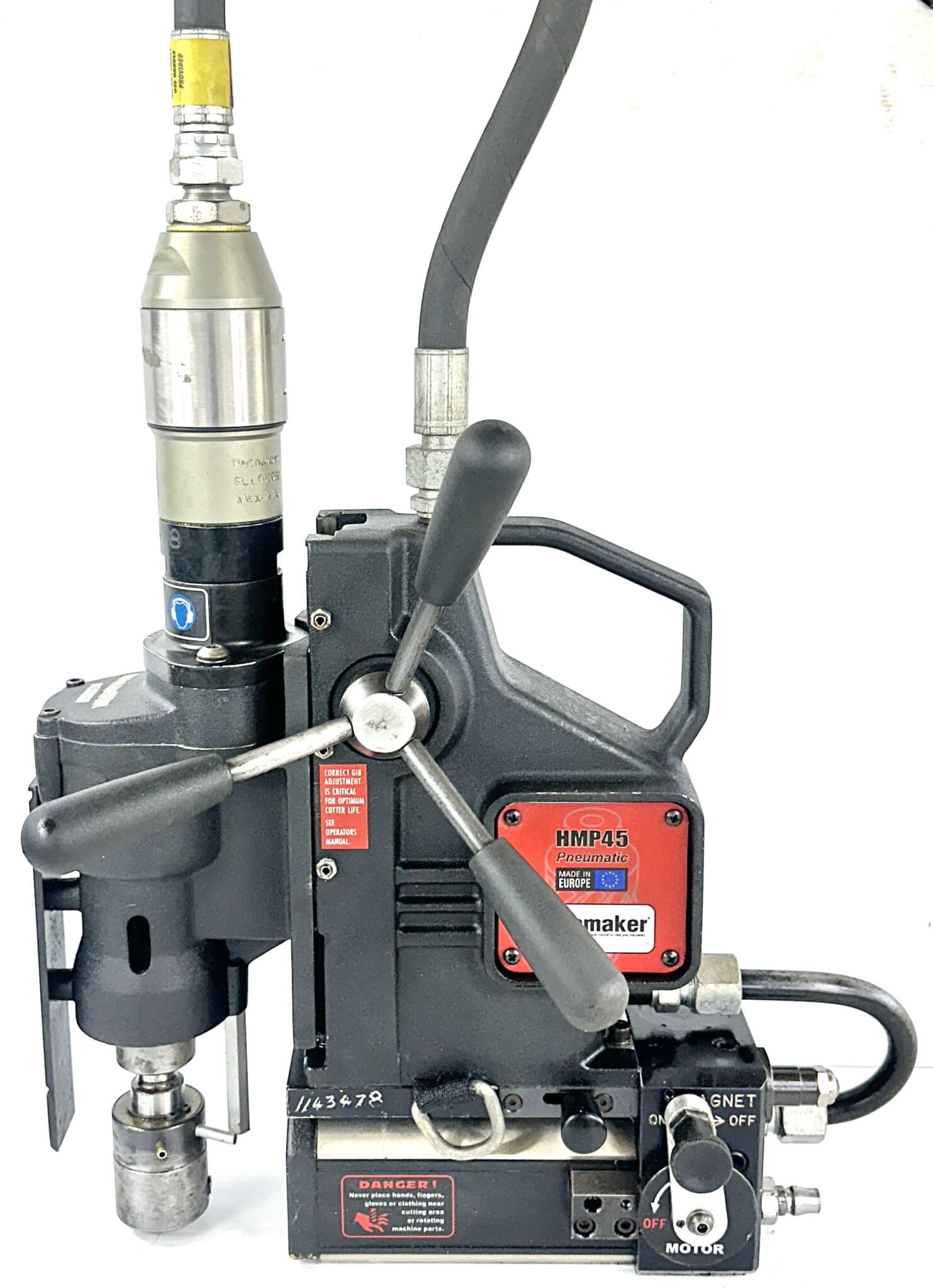

Holemaker HMP45

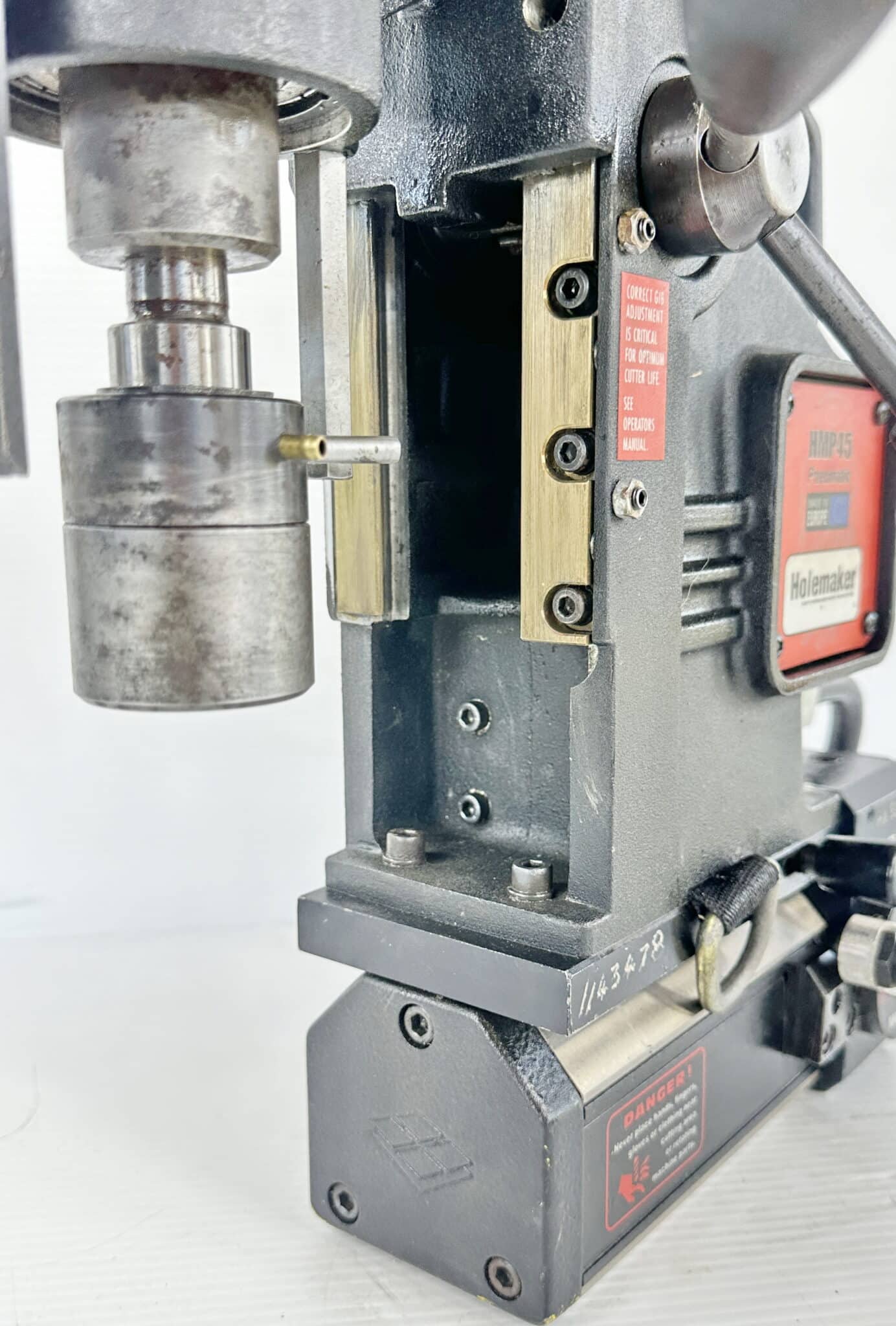

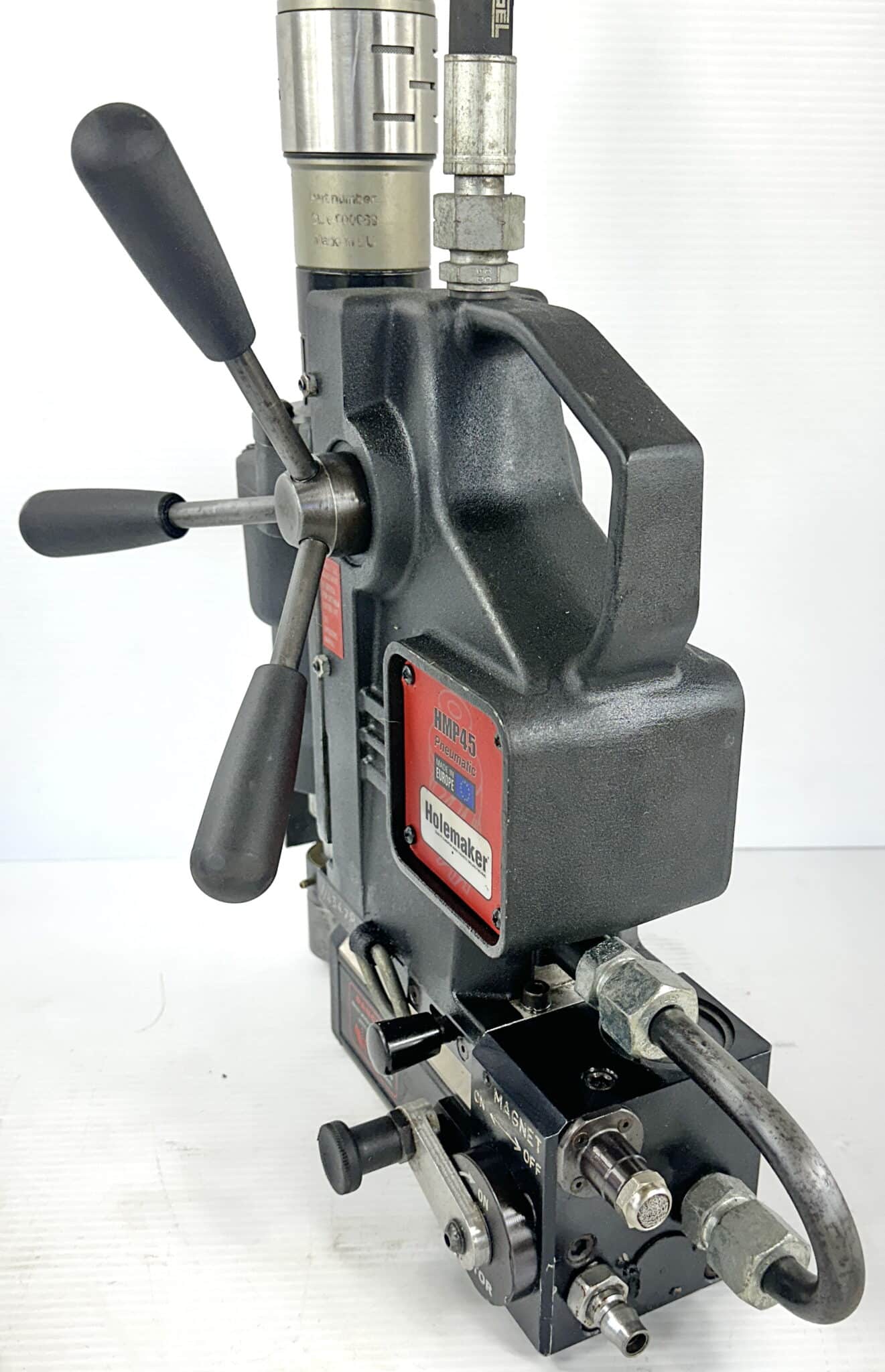

This Magdrill was held as a spare on a project and has been in storage for 10 years. The magdrill appears to have never been used and has picked up some light surface rust which has rubbed off – see photos.

“The HMP45 is a compact portable pneumatic powered drilling machine which allows hole cutting up to 45mm diameter and 52mm depth using Holemaker cutters. The No. 2 Morse Taper spindle allows a wide range of tooling to be used with the machine. The combination of pneumatic drive and permanent magnetic base eliminate the need for electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry. Both the machine and the body of the HMP45-ATEX drill is certified ATEX II2G/D C IIC T6;T4 and meets the requirements for use in areas with a risk of explosion.”

Specifications:

• Condition: New
• Type: Pneumatic Magnetic Drill, Annular Cutter
• Make: Holemaker
• Series: Pneumatic
• Model: HMP-45
• Serial: 13-C0372
• Annular Capacity: 45mm x 52mm deep
• Twist Drill Capacity: 23mm

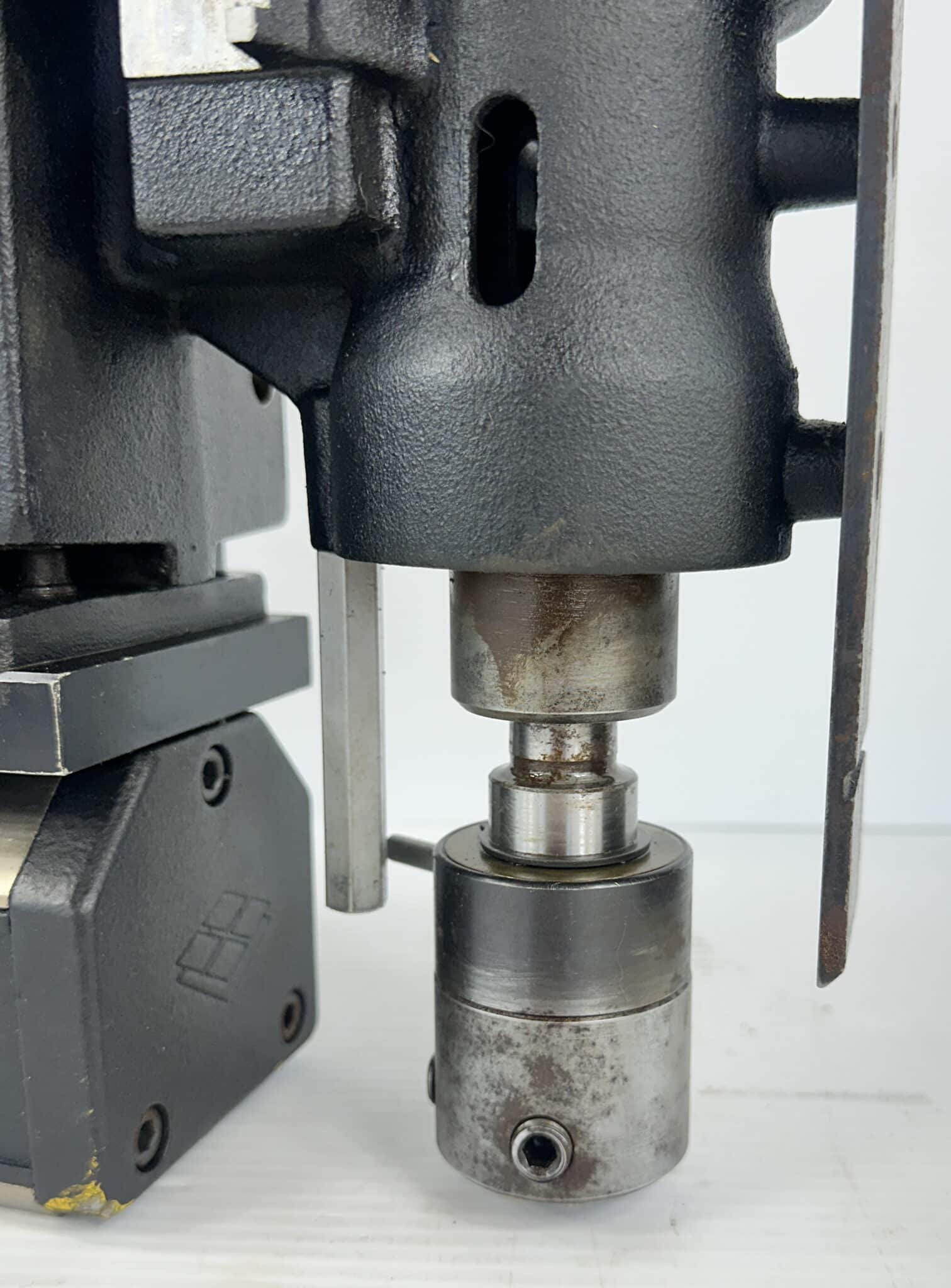

• Spindle: #2 Morse Taper

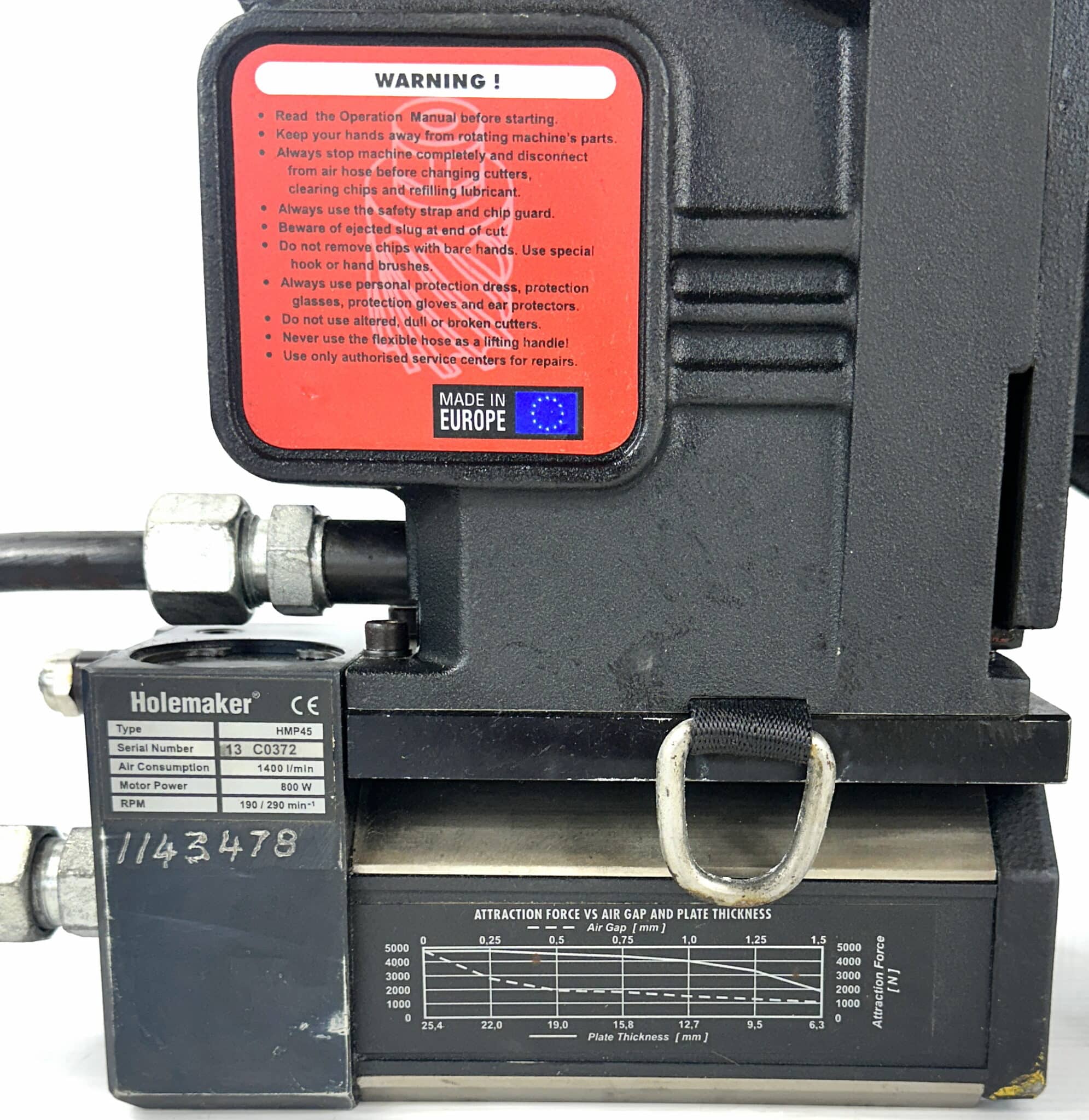

• Magnet: 7500Nm On 25mm Steel Plate
• Height: 690/750mm
• Stroke: 150mm
• Speeds: 192/290rpm

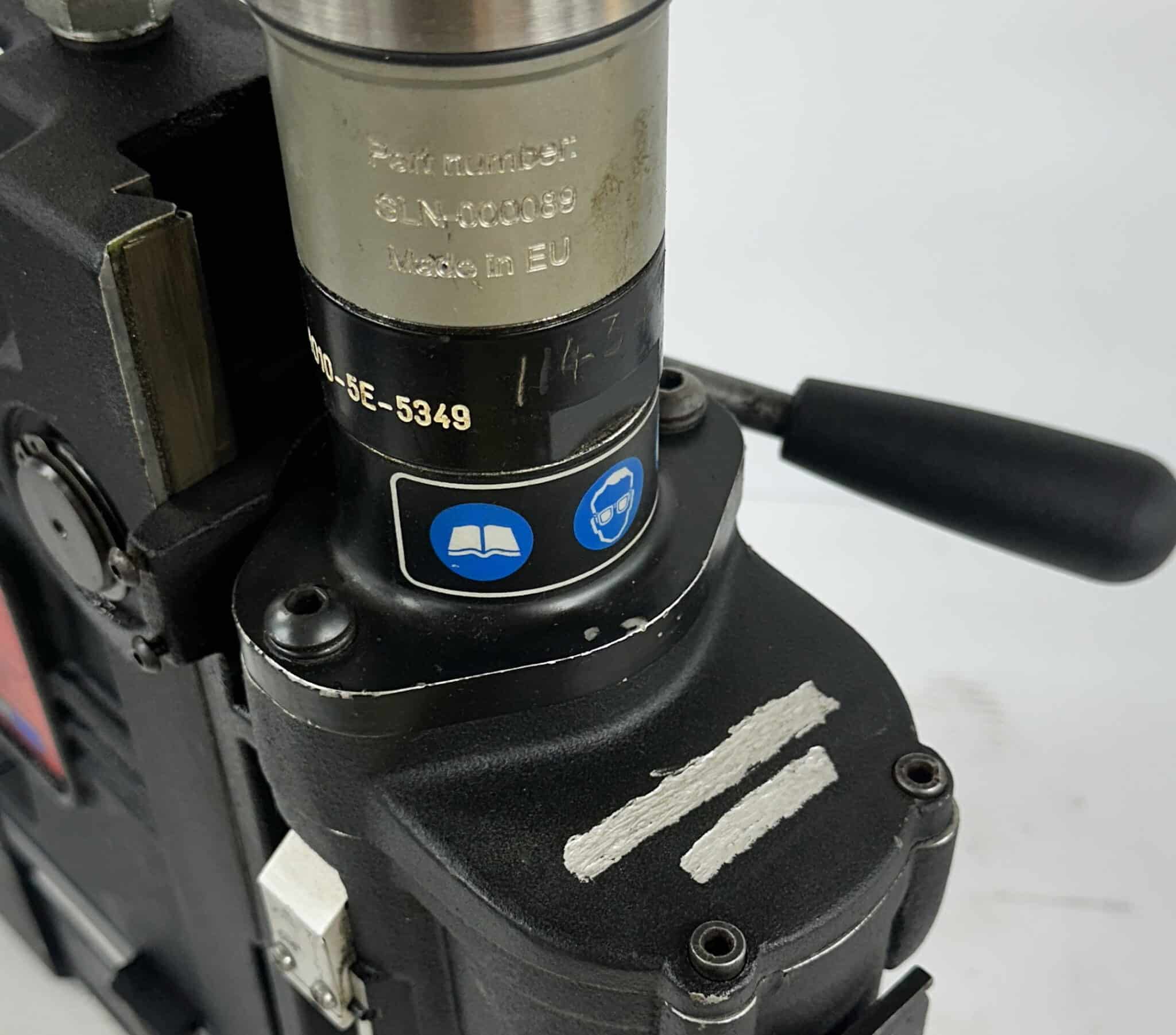

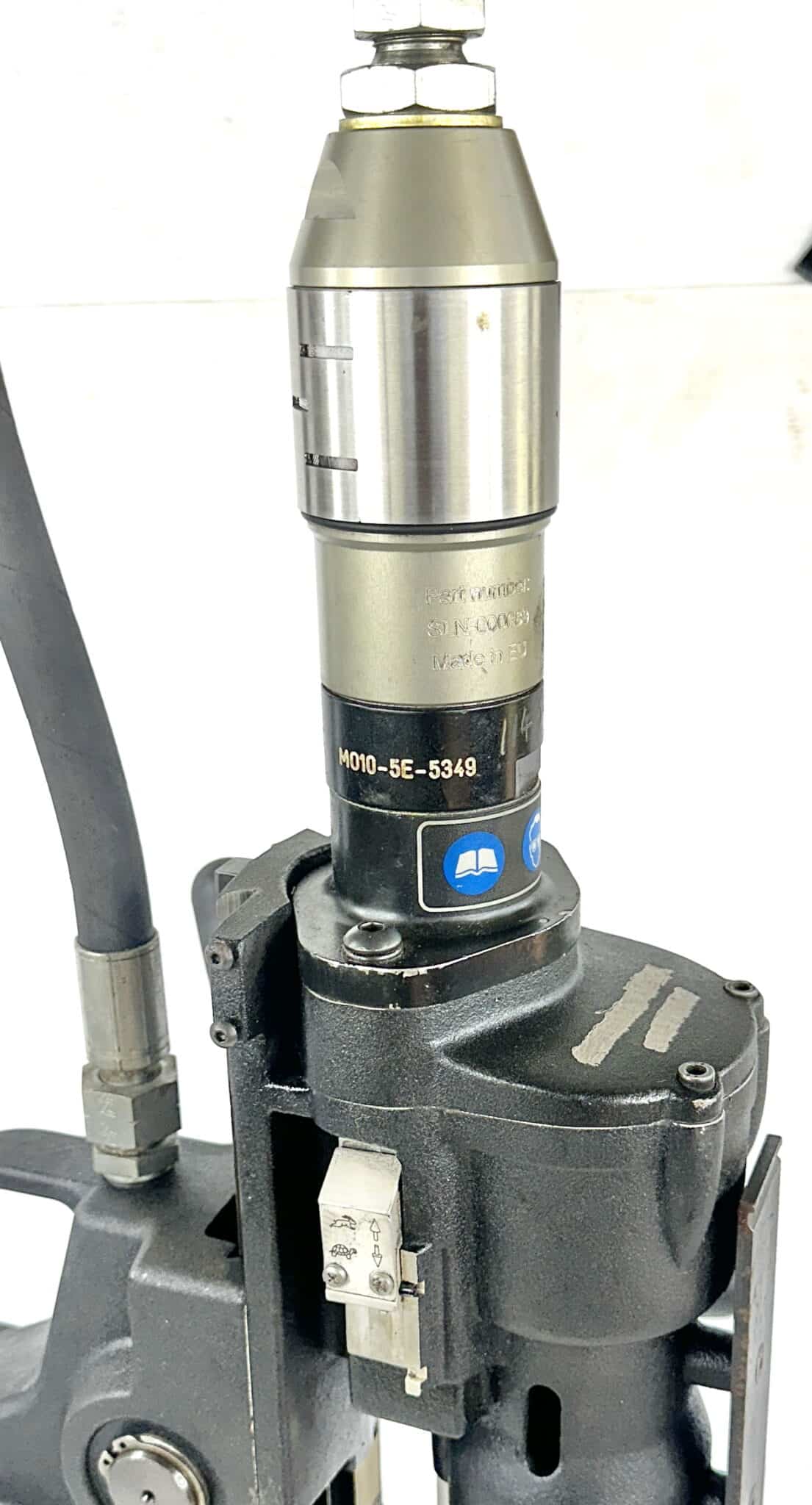

• Motor: 800W Pneumatic, 6bar nominal

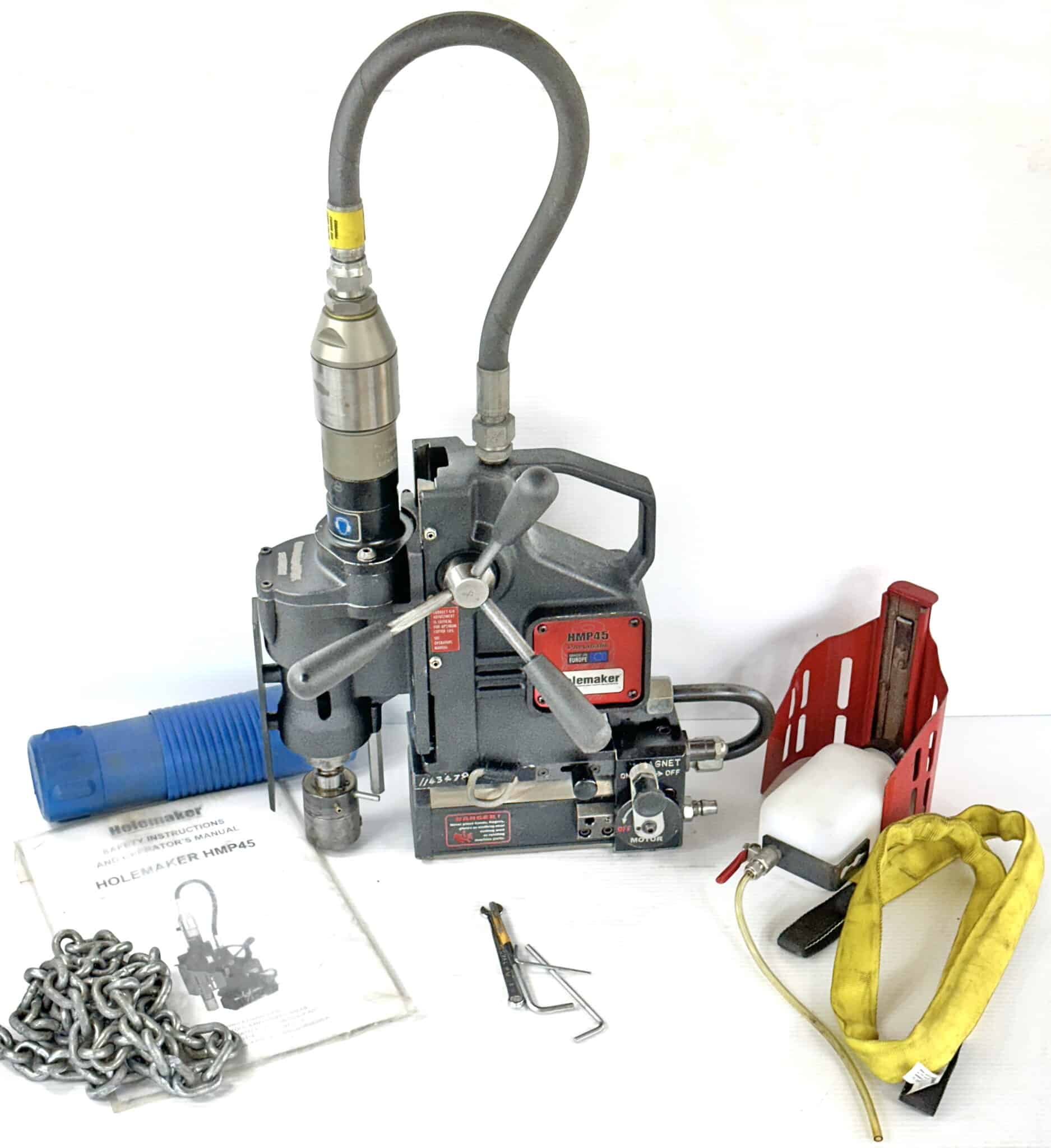

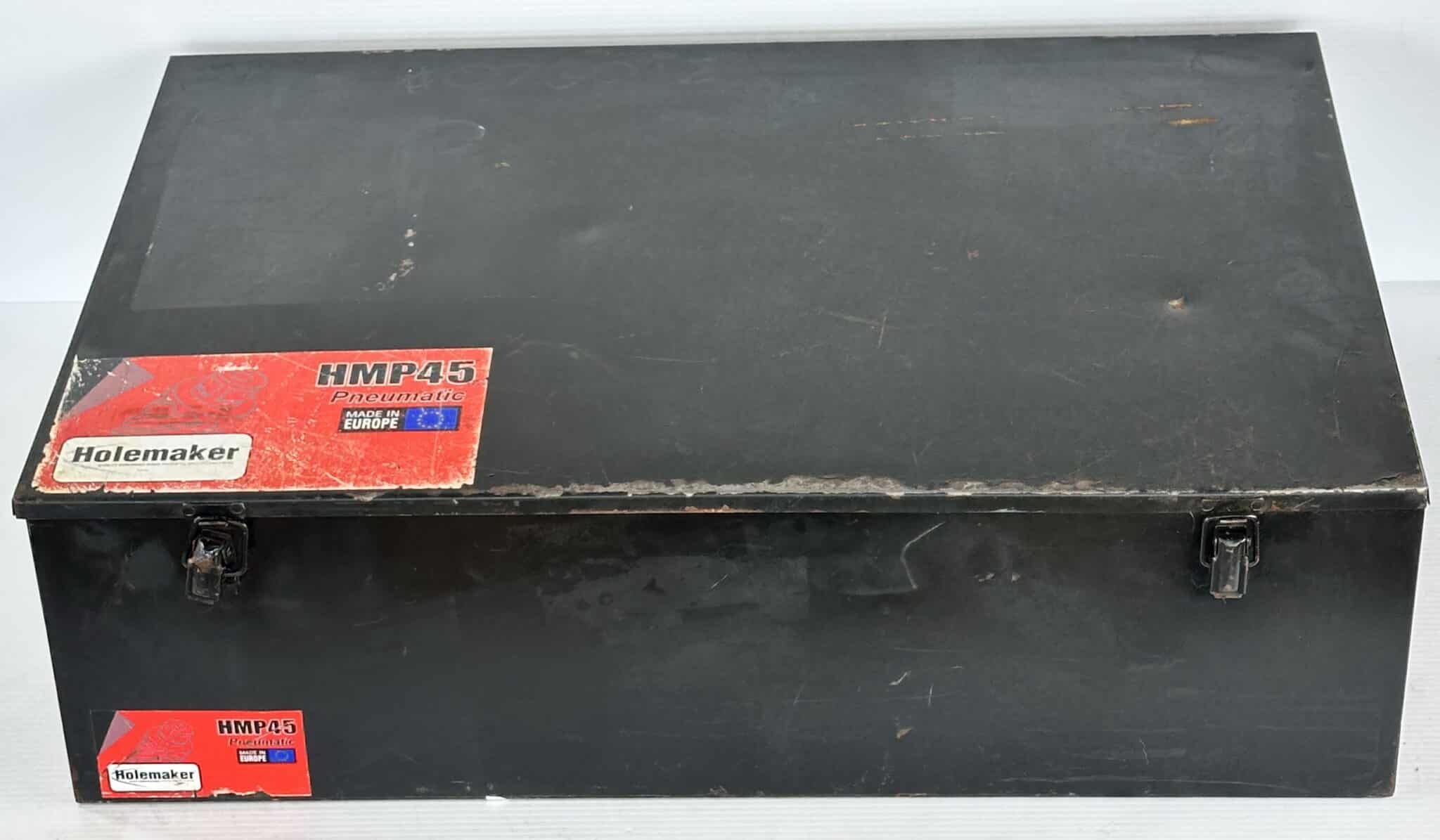

• Accessories: Lubrication Container, User Manual, Asstd tools/bits, Chain, Steel Case
• Engraving: “1143478” on both sides
• Weight: 32.0Kg

Replacement price on this unit is approximately AUD$14,000

The unit is sold with a 30 Day Warranty.
