Bermad 73Q

SKU9050
In Stock1
PriceAUD $1,000.00

“The Model 73Q Quick Pressure Relief Valve is a hydraulically operated, diaphragm actuated control valve that relieves excessive system pressure when this pressure rises above the pre-set value. It immediately, accurately, and with high repeatability responds to system pressure rise by fully opening. Model 73Q provides smooth drip tight closing.”

Specifications:

  • Condition: Used
  • Type: Angled Quick Pressure Relief Hydraulic Water Valve
  • Make: Bermad
  • Series: Sigma 73Q, 700

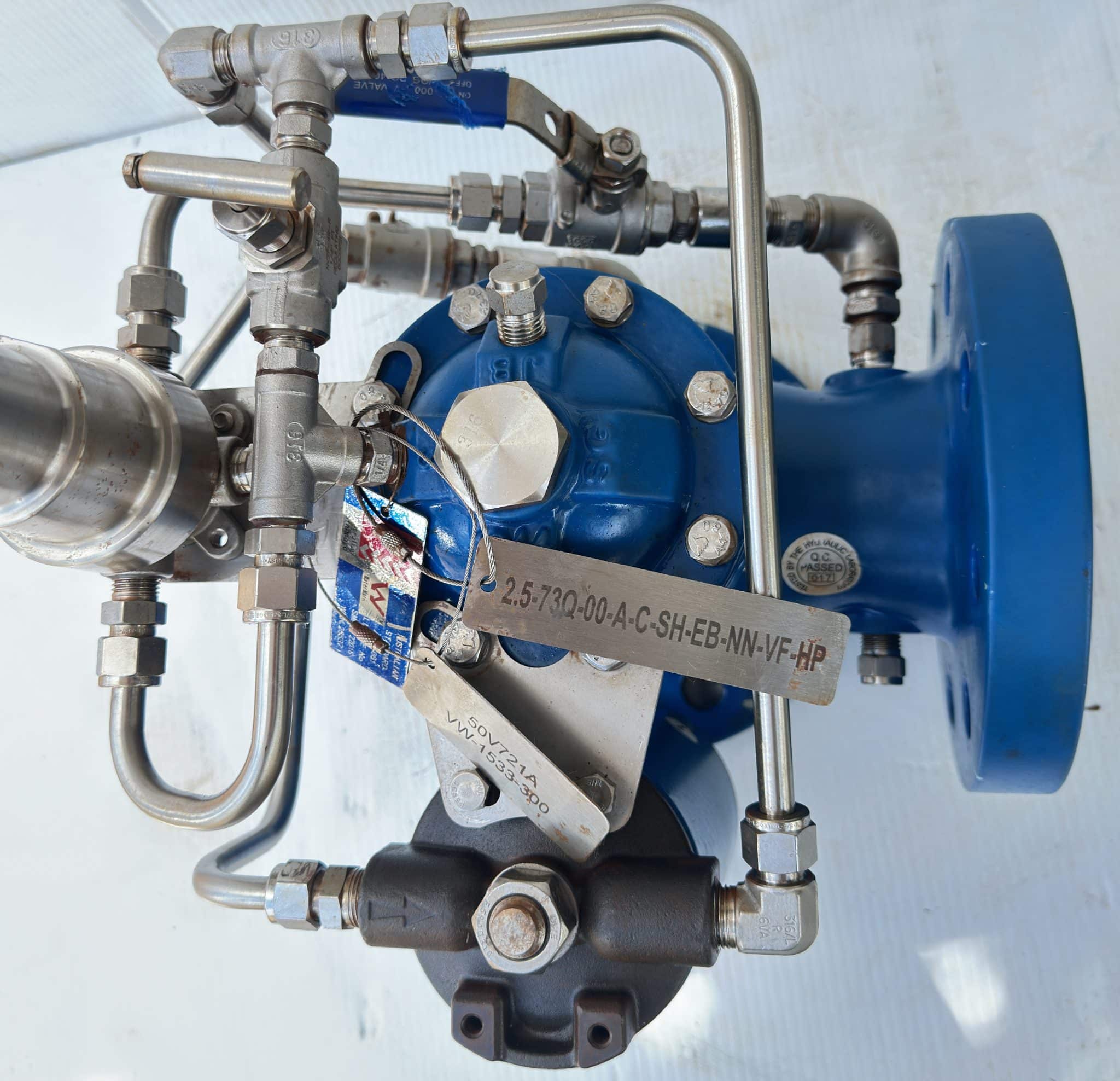

  • Model: WW-2.5-73Q-00-AC-S-H-EB-NN-VF-HP

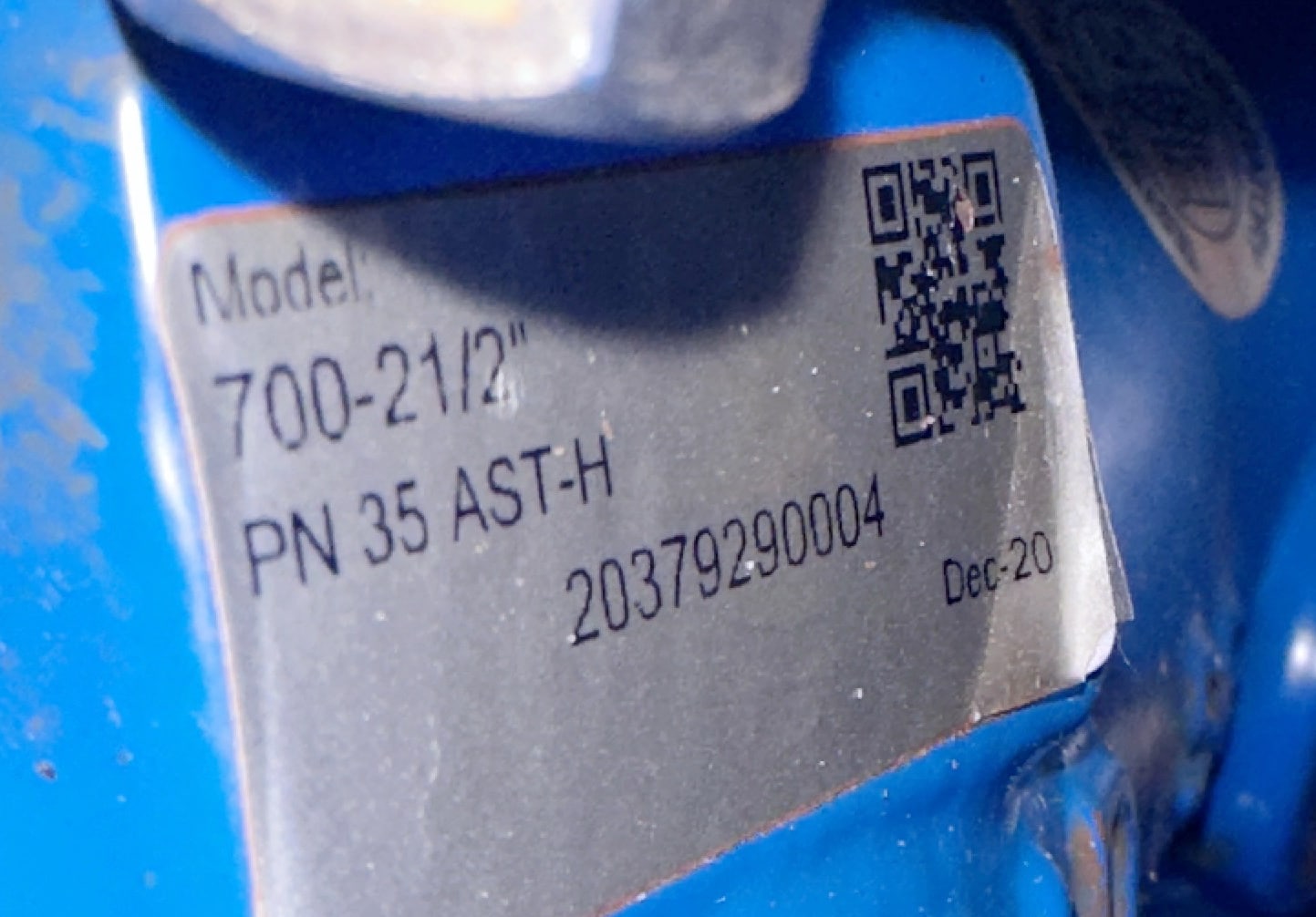

  • Serial: 50V721A, VW-1533-300, 20379290004
  • DOM: Dec 2020
  • Size: 100mm
  • Rating: DN100, PN-35 AST-H
  • Fittings: Flange
  • Options: Vport Throttle Plug, Large Control Filter,
  • Housing: Ductile Iron, coated
  • Standards: Drinking Water
  • Weight: 23.9kg

New price on this unit is approximately AUD$3000

The unit is sold with a 30 Day Warranty.

Used Bermad Sigma 73Q 63mm Bore Pump Quick Pressure Relief Valve
