Argo Hytos 2VS306CS

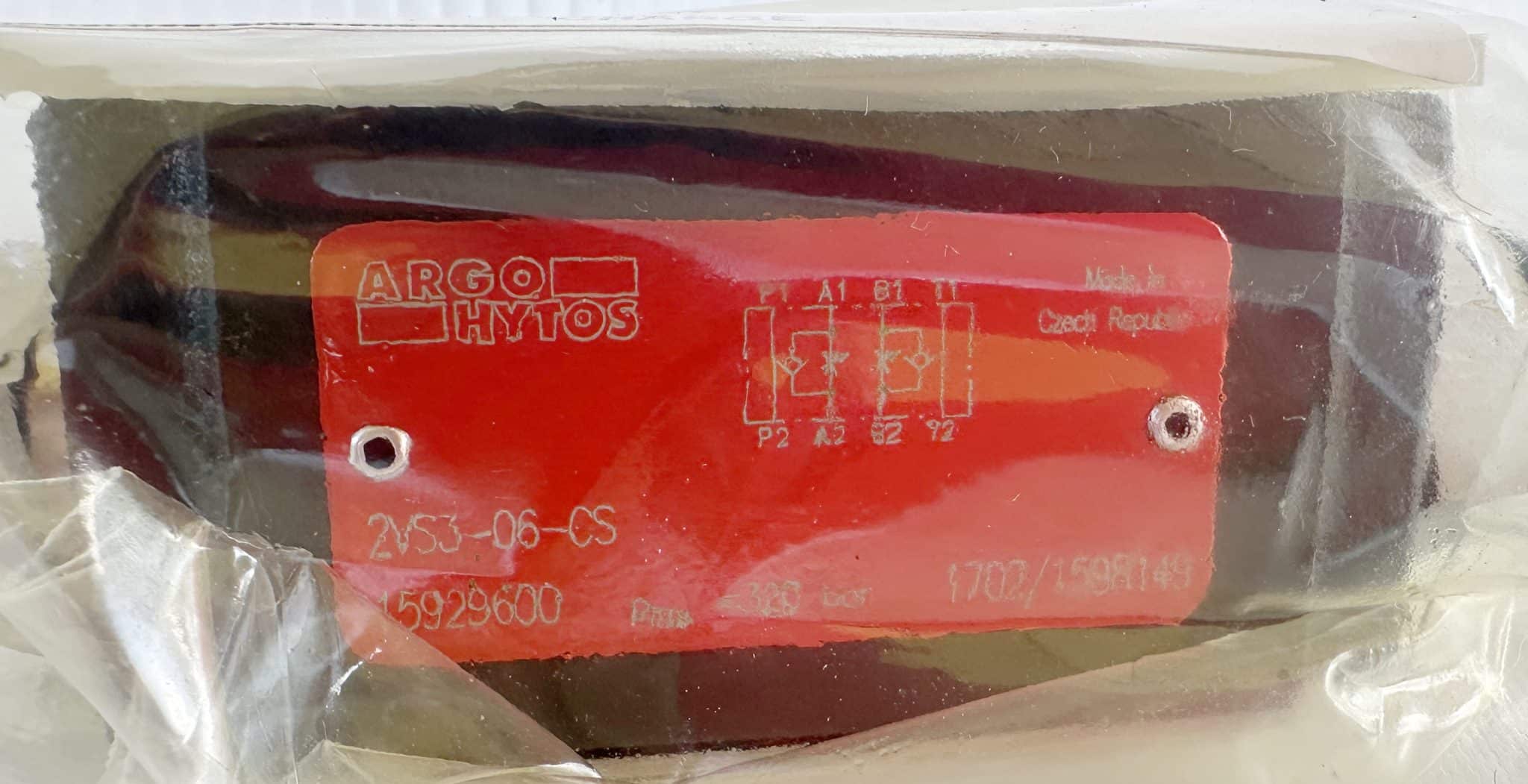

“The Argo Hytos 2VS3-06 valves are Dual hydraulic flow restrictor valves with an optional by-pass check valve are used to control flow rates in two separate lines (A, B) of a hydraulic circuit. The modular design provides six functional versions. The valve restricts the fluid flow in one direction while providing free reverse flow in the opposite direction. The throttle is adjusted by a set screw, which can be operated by a key, a hand screw, or a hand screw with key lock. The sandwich design supports stacking with other components of the same size. The separate O-ring plate provides sealing of the valve on a connecting surface. Depending on the valve installation it functions as a meter-in or meter-out flow control device. Changing the valve from meter-in to meter-out mode can be done by turning the valve by 180¡ around its horizontal. The orientation of the throttle check valve(s) in the valve body corresponds with the symbol on the nameplate.”

Specifications:

• Condition: New
• Type: Throttle Check Valve
• Make:b Argo Hytos (Czech)
• Model: 2VS3-06-CS
• Part: 15929600
• Ports: 2 Port 1-Way
• Flow: 21.1gpm
• Pressure: 4640psi
• Size: 7.5mm
• Accessories: Nil
• Packaging: Original Sealed plastic bag
• Weight: 1.1kg

Replacement price on this unit is approximately AUD$575

This unit is sold with a 30 Day Warranty.
