ABB 264HSVKBB1

SKU220
In Stock1
PriceAUD $600.00

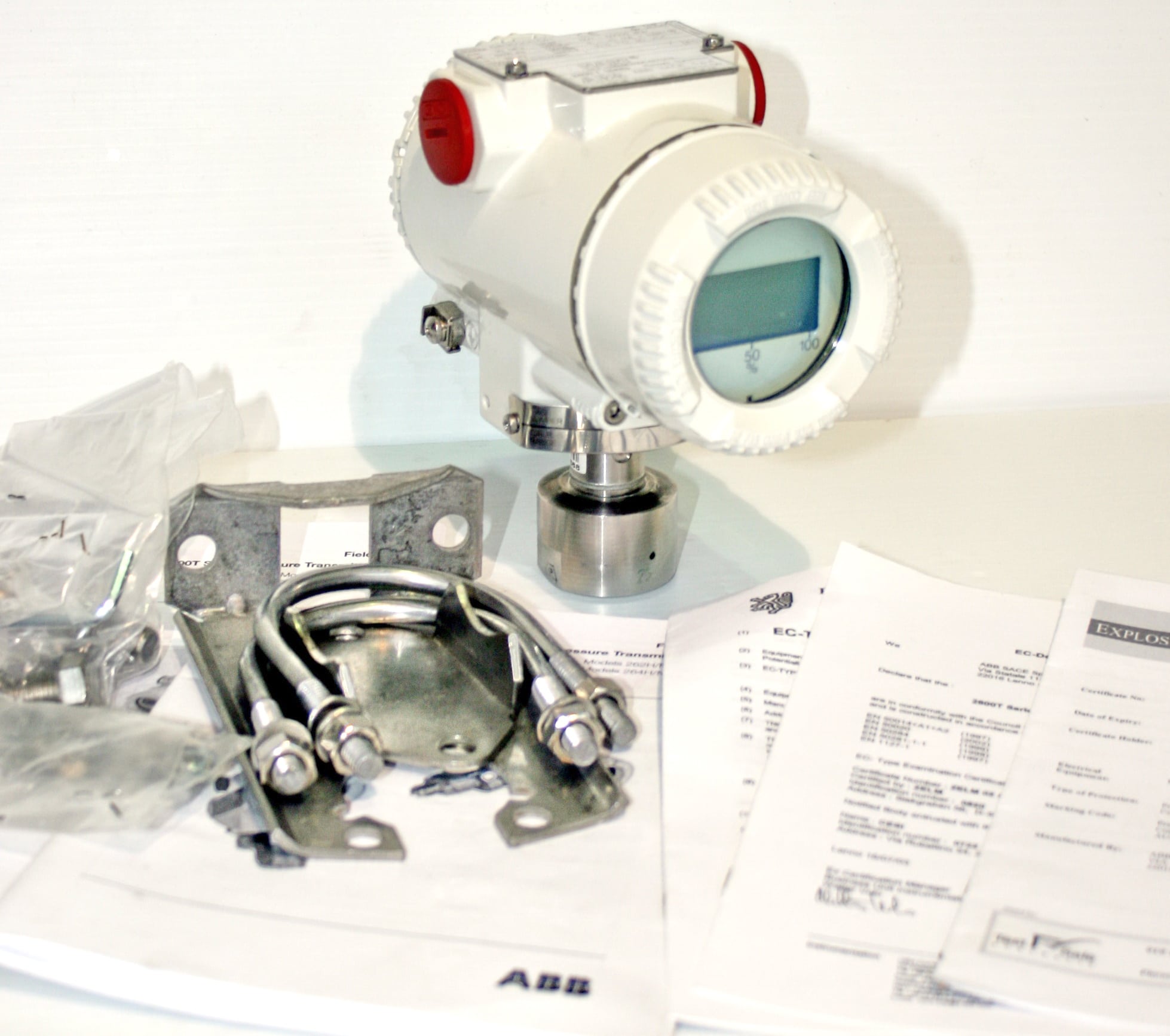

“Model 264HS is a high overload gauge pressure transmitter with a maximum working pressure up to 90MPa, 13050psi. It comprises a reliable sensing system coupled with the very latest digital technologies, providing a large turn down ratio up to 100:1. The user has a comprehensive choice of sensors and is therefore able to optimize in-use total performance and stability. Configuration facilities are provided locally via local keys combined with LCD indicator or via hand held terminal or PC configuration platform.”

Specifications:

  • Condition: New
  • Type: Presure Transmitter
  • Make: ABB
  • Series: 2600T
  • Model: 264HSVKBB1

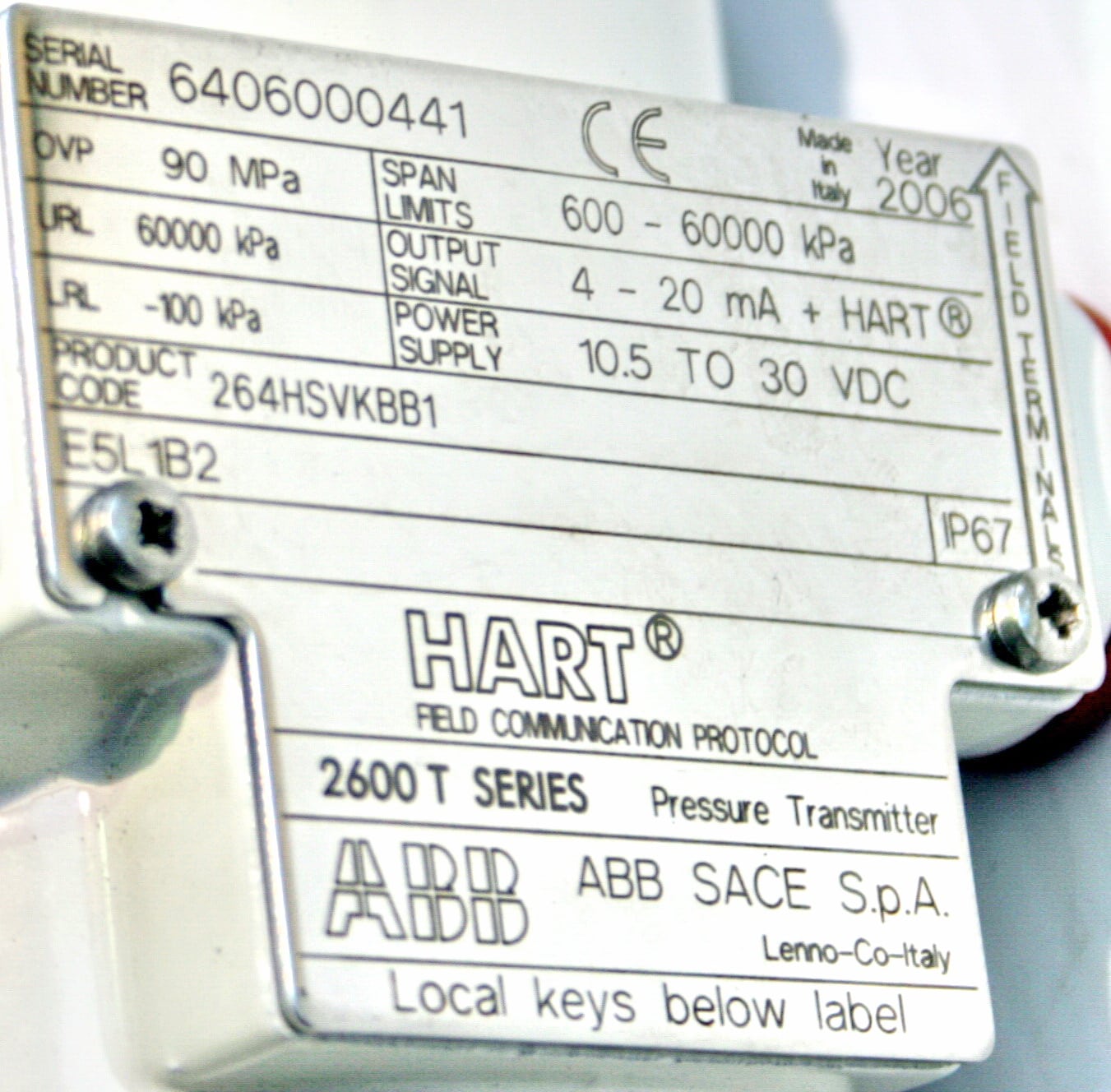

  • Serial: 6406000441
  • Year: 2006
  • Span: 600-60,000MPa (overpress 90MPa)
  • Input: 10.5-30VDC
  • Output: HART

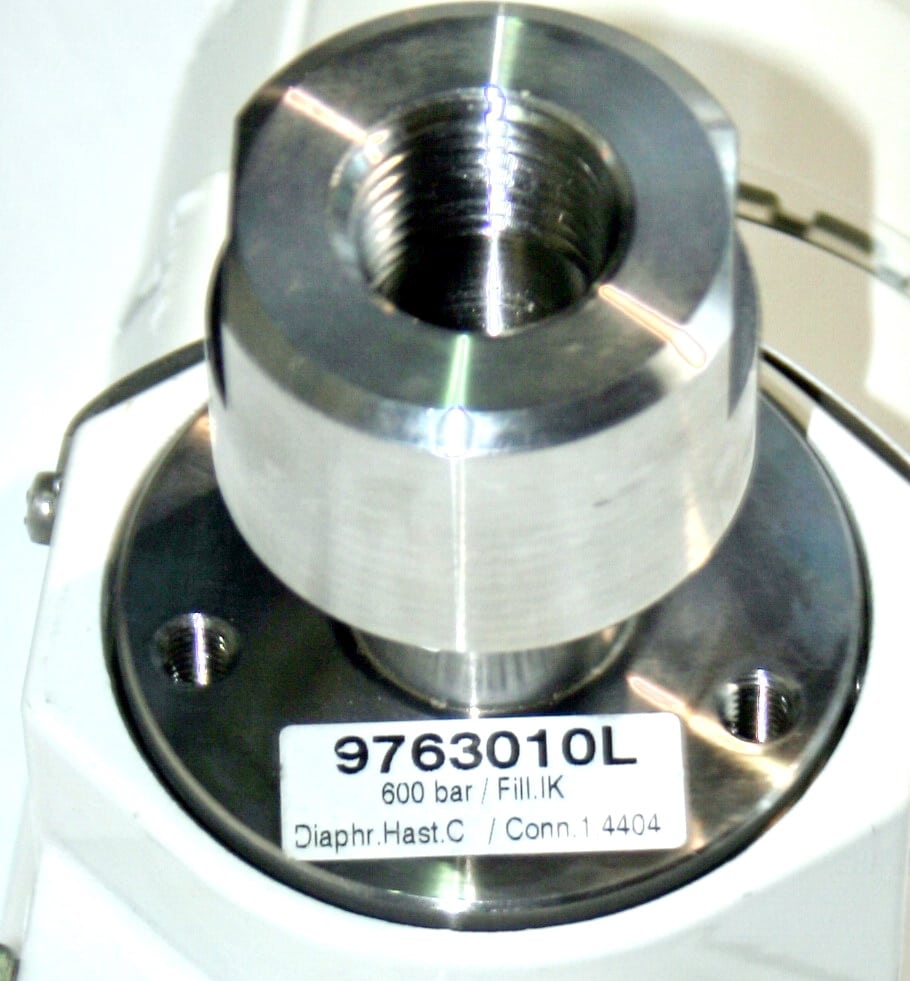

  • Connection: Screw, 9763010L 600bar/Fill.IK, Diaphr.Hast.C/Conn 1.4404
  • Weight: 3.2kg

The unit is sold with a 30 Day Warranty.

New ABB 264HSVKBB1 2600-T High Overload Pressure Transmitter HART For Sale Buy Price
